The PTD32 series are AC current transducers. The CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage.
The PTD32 series are AC current transducers. The CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage.
| MODEL | INPUT CURRENT | AVAILABLE OUTPUT |
| PTD32-100 | 100 A | POWER SUPPLY @ 18 V - 35 V CURRENT OUTPUTS @ 4 mA - 20 mA |
| PTD32-200 | 200 A | |
| PTD32-500 | 500 A | |
| PTD32-800 | 800 A | |
| PTD32-1000 | 1000 A |
| Phase fired controlled heaters |
| Quickly varying motor loads |
| Chopped wave form drivers |
| Current measurements |
| Split Core design |

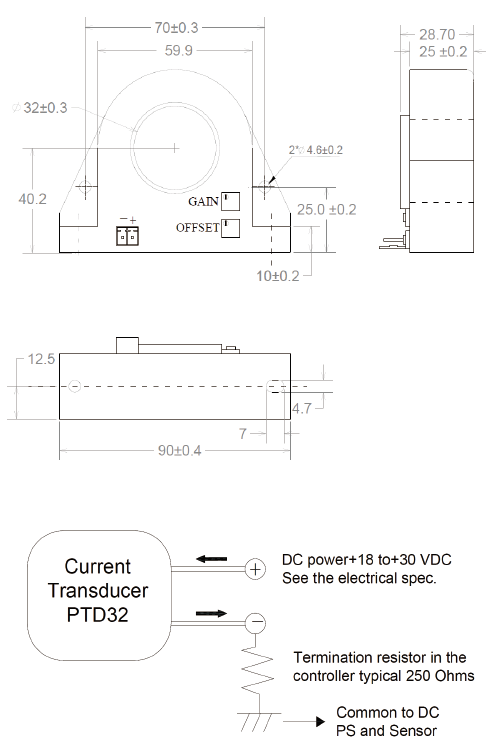

| 4 mA - 20 mA DC output, 18 V - 35 V DC powered |

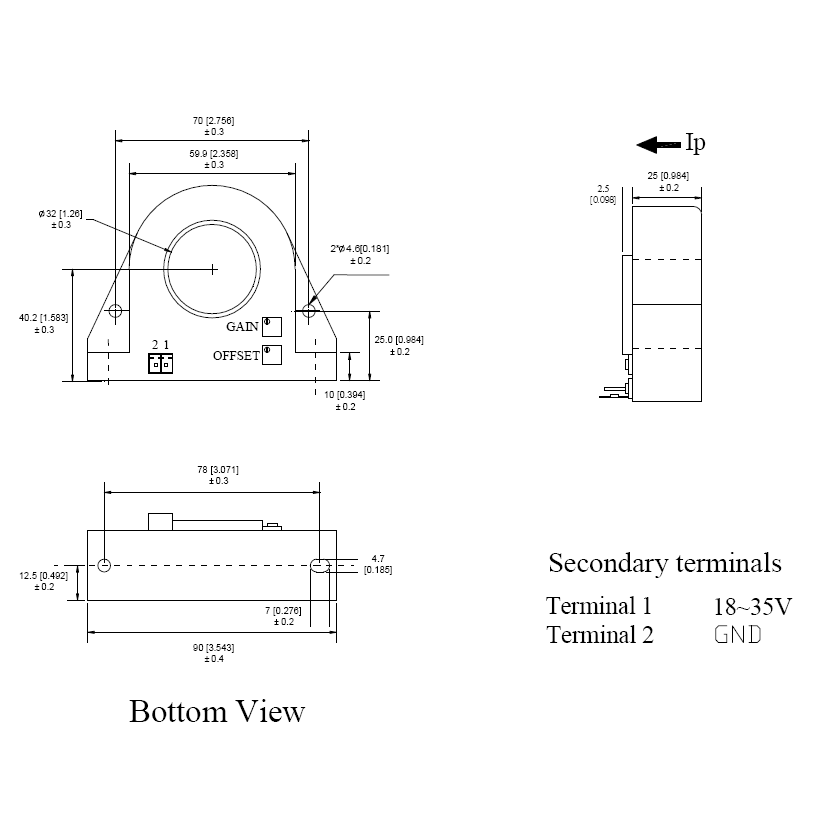

| 21 * 51 mm windows size |
| 0 - 600 A current customized |
| Frequency range 20 Hz - 400 Hz |
| Weight 500 g |
| Easy installation |
| Excellent linearity over the whole range |
| Compact case |
| High isolation between primary and secondary |
