PCO26 Closed type transformer

The PCO26 series are solid core energy monitoring current transformers. The CT is small size and low cost.

Measuring range:0 - 400A Measurement Frequency:50 - 60Hz Precision range:0.1%, 0.2%, 0.5%, 1%


In Stock

YES

Delivery

10 Days

Warranty

24 months

Overview

The PCO26 series are solid core energy monitoring current transformers. The CT is small size and low cost.

Specification

MODELINPUT CURRENTAVAILABLE OUTPUT
PCO26-5050A

CURRENT OUTPUTS @

40mA, 50mA, 100mA

VOLTAGE OUTPUTS @

0.25V, 0.333V, 0.5V, 1V, 2V

Output can be customized

by customer

PCO26-6060A
PCO26-7575A
PCO26-100100A
PCO26-125125A
PCO26-150150A
PCO26-200
200A
PCO26-250250A
PCO26-300300A
PCO26-400400A


Environmental

Energy and sub-metering products
Electrical load monitoring
Network equipment
APPLICATIONS
Instruments and sensors
Control systems
Go GREEN initiatives

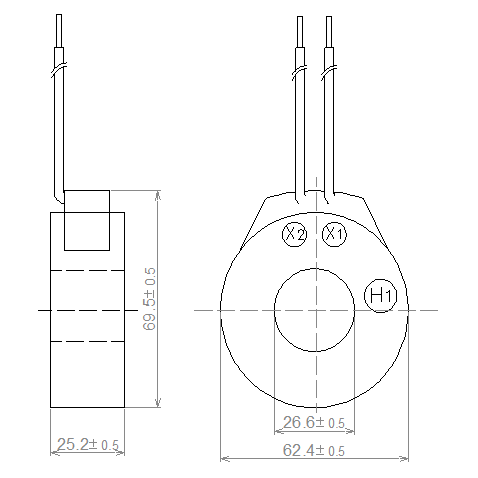

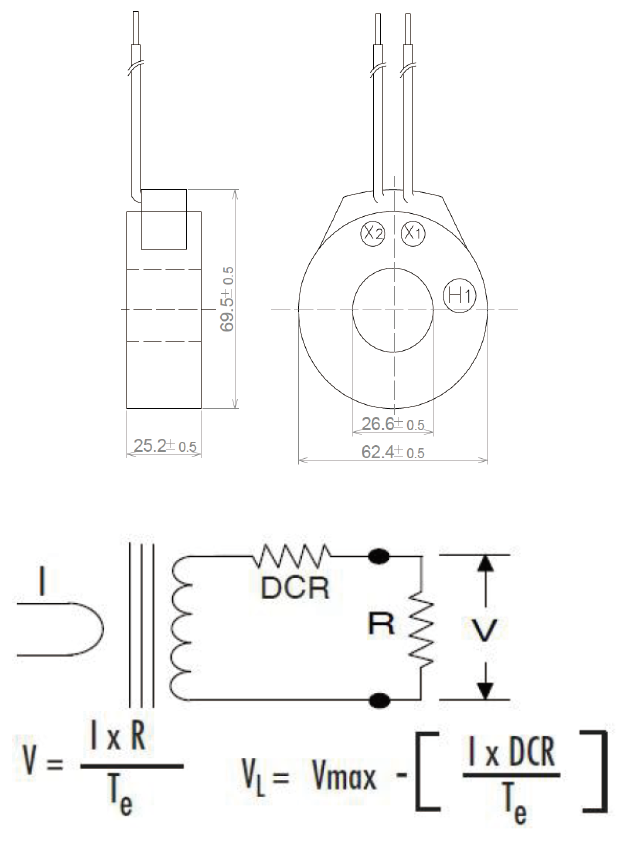

1.024” window opening (ID)
Custom design Turns-Ratio available
Approximate weight 200g
Standard Input Current 0.1 - 400A
Frequency 50Hz - 400Hz
SPECIFICATIONS
Standard accuracy 0.1, 0.2, 0.5, 1, 3
Insulation Voltage 4000Vac/1min
Operating Temp. - 40°C to + 70°C
Storage Temp. - 45°C to + 85°C
