PCOL09 Closed type transformer

The PCOL09 series are solid Core energy monitoring current transformers. The CT is small size and low cost.

Measuring range:0 - 50A  Measurement Frequency:50 - 60Hz  Precision range:0.1%, 0.2%, 0.5%, 1%


In Stock

YES

Delivery

10 Days

Warranty

24 months

Overview

The PCOL09 series are solid Core energy monitoring current transformers. The CT is small size and low cost.

Specification

MODELINPUT CURRENTAVAILABLE OUTPUT
PCOL09-055A

OUTPUTS @ 5mA, 10mA,

15mA, 20mA,  100mA

VOLTAGE OUTPUTS @

0.333V, 0.5V, 1V, 2V

(Output can be customized

by customer)

PCOL09-1010A
PCOL09-2020A
PCOL09-4040A
PCOL09-6050A


Environmental

Energy and sub-metering products
Electrical load monitoring
Network equipment
APPLICATIONS
Instruments and sensors
Control systems
Go GREEN initiatives

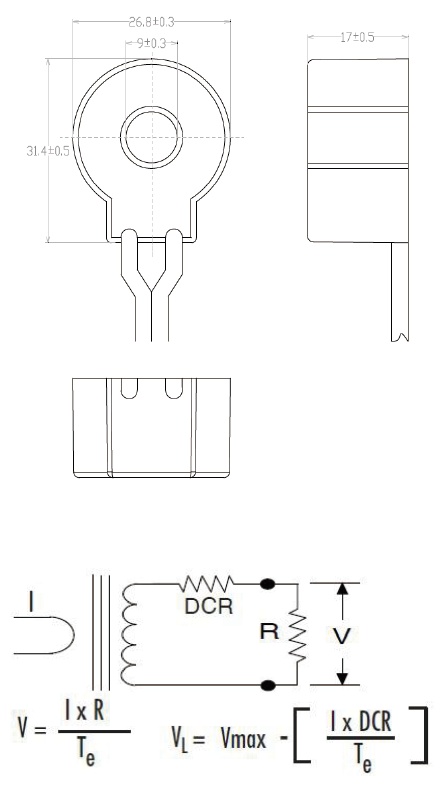

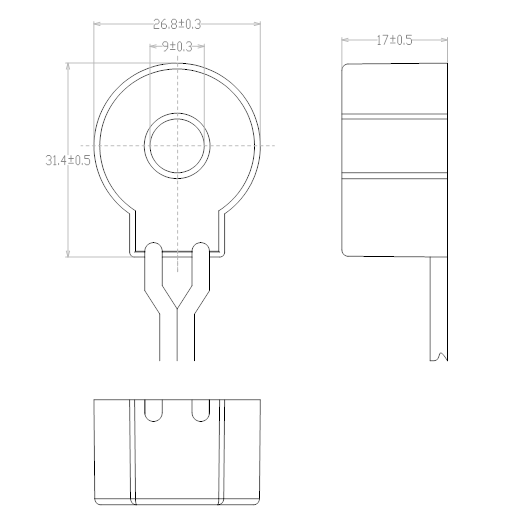

0.35” window opening (ID)
Custom design Turns-Ratio available
Approximate weight 25g
Rated amp: 0-50A
Frequency 50Hz - 60Hz
SPECIFICATIONS
Standard accuracy 0.1, 0.2, 0.5
Insulation Voltage 4000Vac/1min
Operating Temp. - 40°C to + 70°C
Storage Temp. - 45°C to + 85°C
