PCO40 Closed type transformer


The PCO40 Series are solid core energy monitoring current transformers. The CT is small size and low cost.

Measuring range:0 - 800A Measurement Frequency:50 - 60Hz Precision range:0.1%, 0.2%, 0.5%, 1%


In Stock

YES

Delivery

10 Days

Warranty

24 months

Overview

The PCO40 Series are solid core energy monitoring current transformers. The CT is small size and low cost.

Specification

MODELINPUT CURRENTAVAILABLE OUTPUT
PCO40-100100ACURRENT OUTPUTS @
20mA, 33.3mA,
40mA, 50mA, 100mA, 1A, 5A
TAGE OUTPUTS @
0.25V, 0.33V, 0.5V, 1V, 2V
Output can be
customized by customer
PCO40-200200A
PCO40-300300A
PCO40-400400A
PCO40-500500A
PCO40-600600A
PCO40-700700A
PCO40-800800A


Environmental

Energy and sub-metering products
Electrical load monitoring
Network equipment
Instruments and sensors
Control systems
Go GREEN initiatives

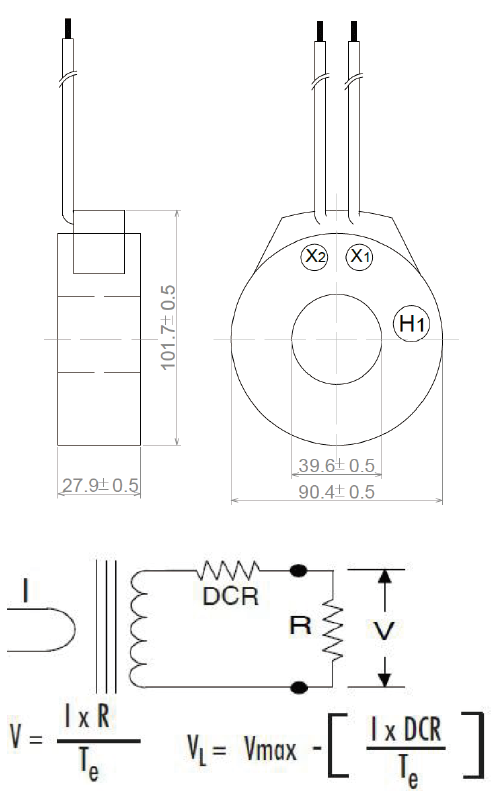

1.57" window opening (ID)
Custom design Turns-Ratio available
Approximate weight 500g
Standard Input Current 0.1 - 800A
Frequency 50Hz - 400Hz
SPECIFICATIONS
Standard accuracy 0.1, 0.2, 0.5, 1, 3
Insulation Voltage 4000Vac/1 min
Operating Temp. - 40°C to + 70°C
Storage Temp. - 45°C to + 90°C
