PCO15 Micro precision transformer


The PCO15 series are mini-precision current transformers. The CT is Small size and low cost.

Measuring range:0 - 70 A Measurement Frequency:50 - 60 Hz Special indicators: customizable.


In Stock

YES

Delivery

10 Days

Warranty

24 months

Select Options

MODEL
- +
Add to inquiry form

Overview

The PCO15 series are mini-precision current transformers. The CT is Small size and low cost.

Specification

MODELINPUT CURRENTAVAILABLE OUTPUT
PC015-3030 ACURRENT OUTPUTS @
10 mA, 20 mA, 30 mA, 40 mA,

50 mA, 70 mA

Output can be customized by customer

PCO15-5050 A
PCO15-6060 A
PCO15-7070 A


Environmental

Energy and sub-metering products
Electrical load monitoring
Network equipment
Instruments and sensors
Control systems
Go GREEN initiatives

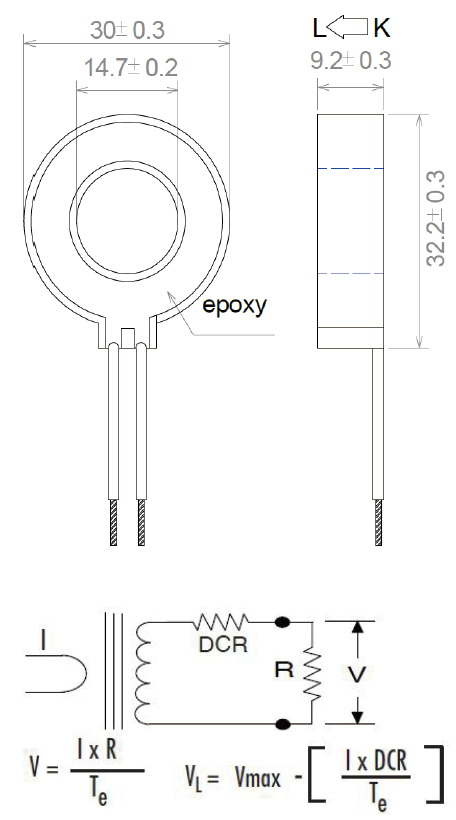

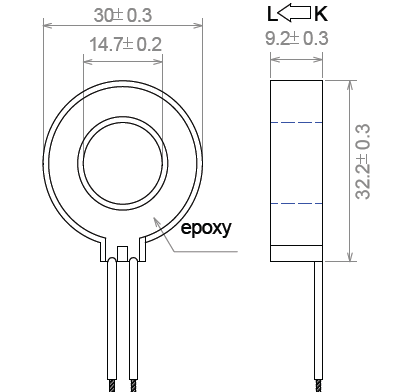

0.512” window opening (ID)
Custom design Turns-Ratio available
Approximate weight 25 g
Standard Input Current 0 - 70 A
Frequency 50 Hz - 60 Hz
Standard accuracy 0.2, 0.5, 1
Insulation Voltage 4000 Vac / 1 min
Operating Temp. - 40 °C to + 65 °C
Storage Temp. - 45 °C to + 85 °C
