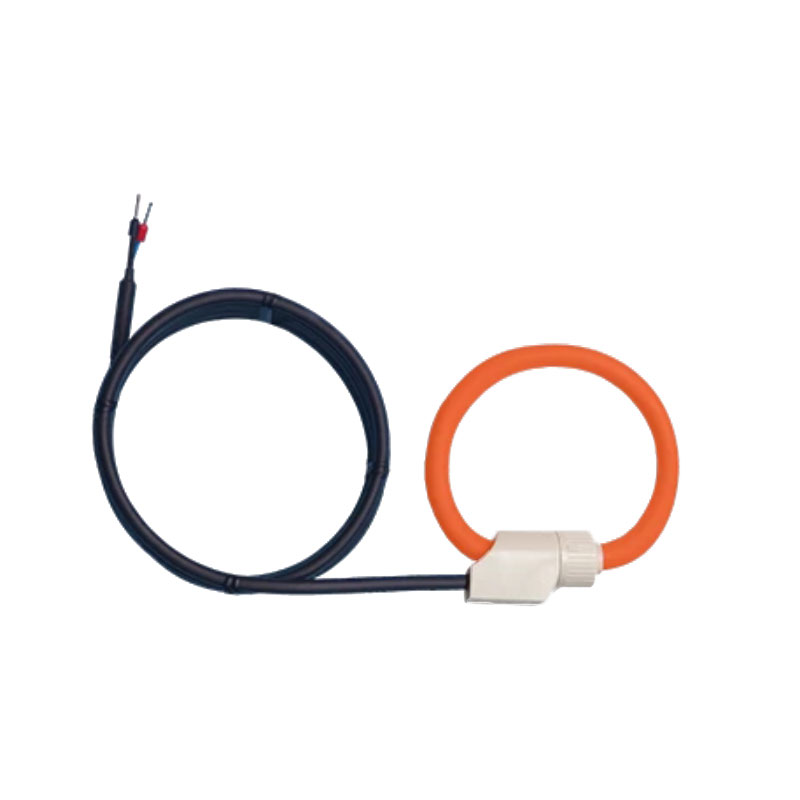

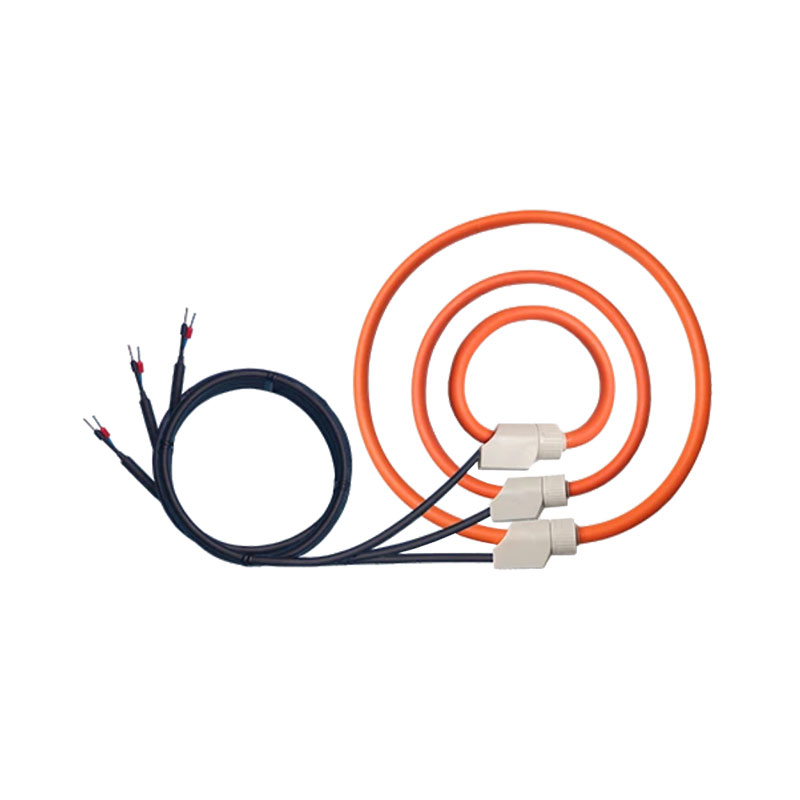

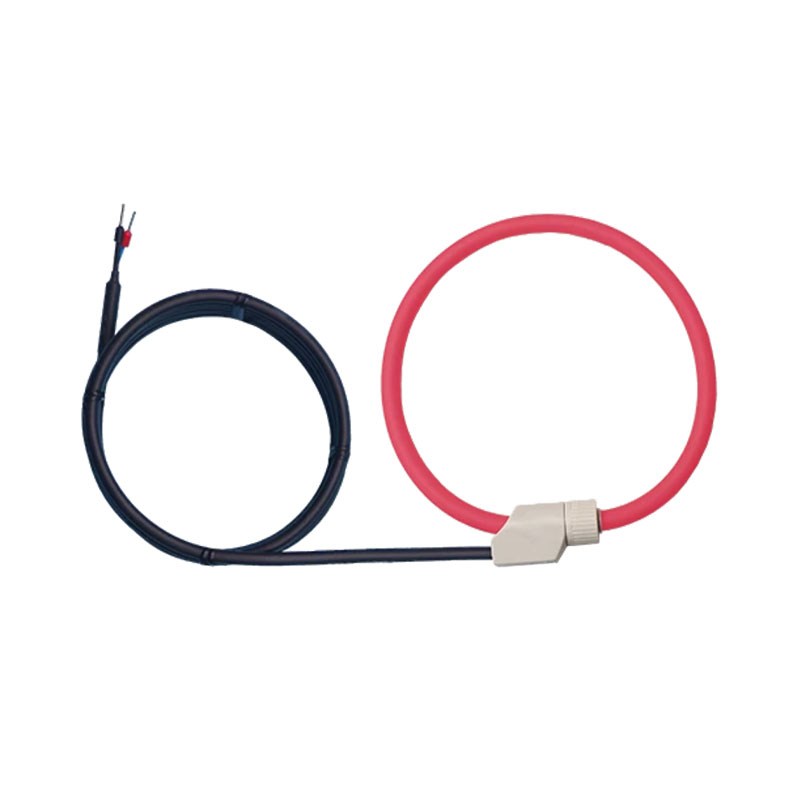

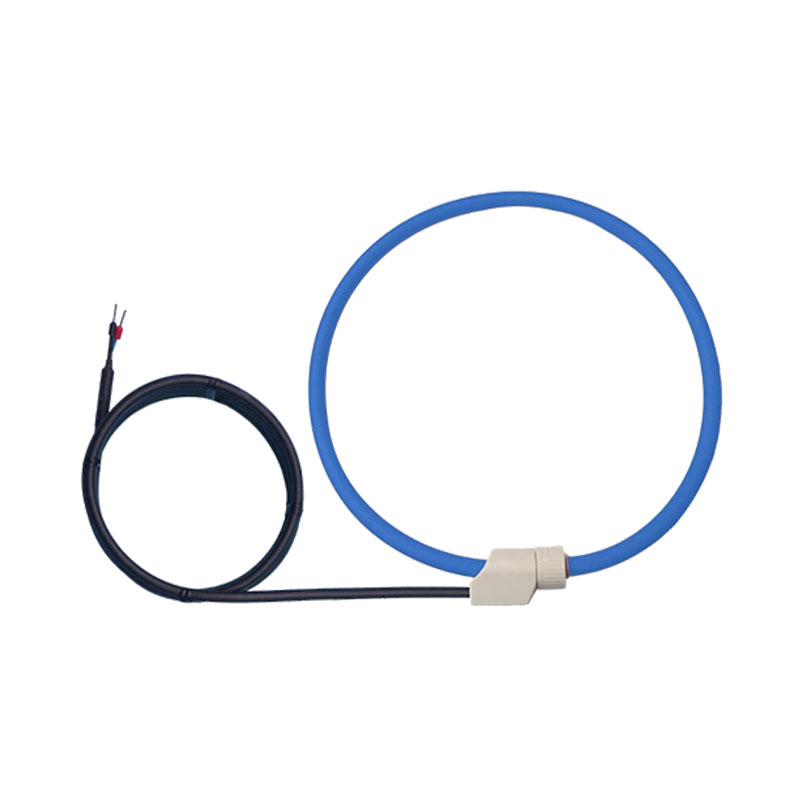

ZRCT is a flexible current sensor that can be directly combined with portable devices such as power analyzers to form a very flexible system.
| MODEL | ZRCT-50 | ZRCT-100 | ZRCT-150 |
| Perimeter | 214 mm | 375 mm | 535 mm |
| Bore size | 50 mm | 100 mm | 150 mm |
| Current | ≤ 500 kA | ||
| Resistance | 50 - 120 Ω | ||
| Large current | 500 kA | ||
| Signal line length | Default 2 m, customizable | ||
| Calibration | 100 ± 0.5 % mV/kA @ 50 Hz | ||
| Not calibrated | 106 ± 5 % mV/kA @ 50 Hz | ||
| Internal resistance | Uncalibrated 200 ppm/C | ||
| Error (center) | ＜ 0.5 % |
| Error (inner circle) | ＜ 1 % |
| Shield | 100 % |
| Insulation voltage | Coil 3000 V Signal line 1000 V |
| Position error | ± 1 % |
| Internal resistance temperature drift coefficient | Uncalibrated 200 ppm/℃ Calibration 50 ppm/℃ |
| Joint | PC |
ZRCT is a flexible current sensor that can be directly combined with portable devices such as power analyzers to form a very flexible system. Suitable for energy consumption monitoring, high-frequency current monitoring, DC ripple measurement, etc. Different sizes can be customized according to requirements.
| Angle difference | ≤ 0.5° |
| Linearity | ± 0.2 % |

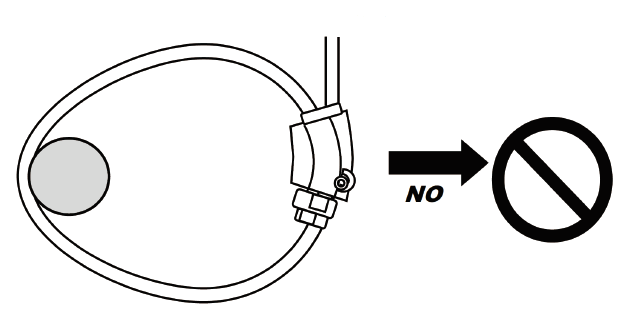

Do not forcefully pull

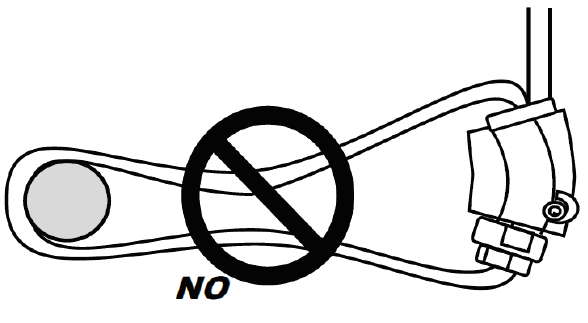

Do not bend forcefully

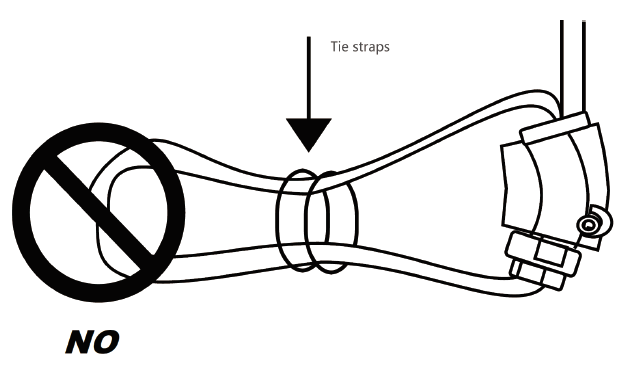

Do not package in a bent state
