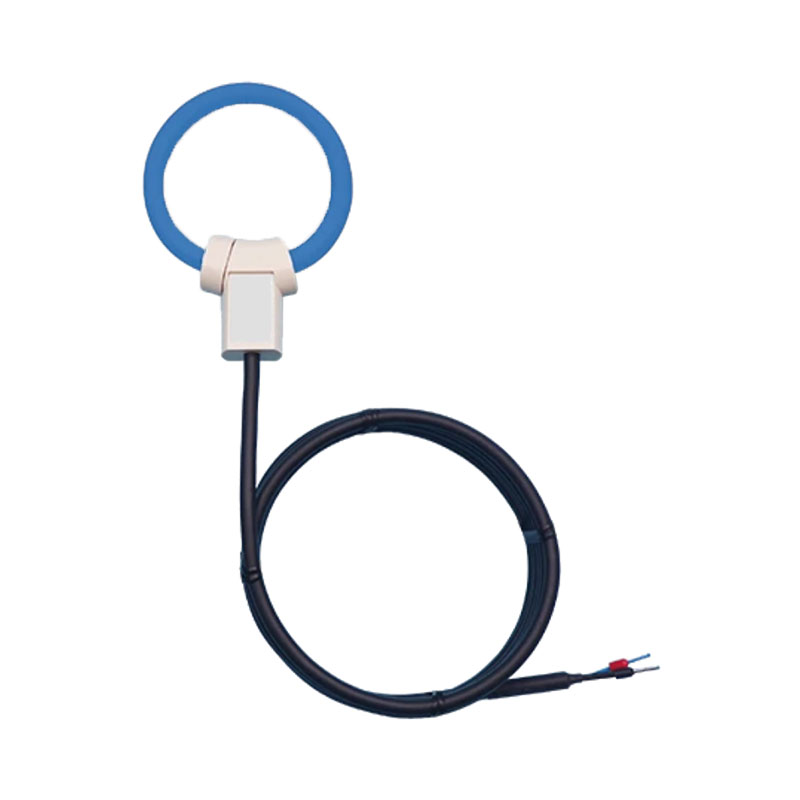

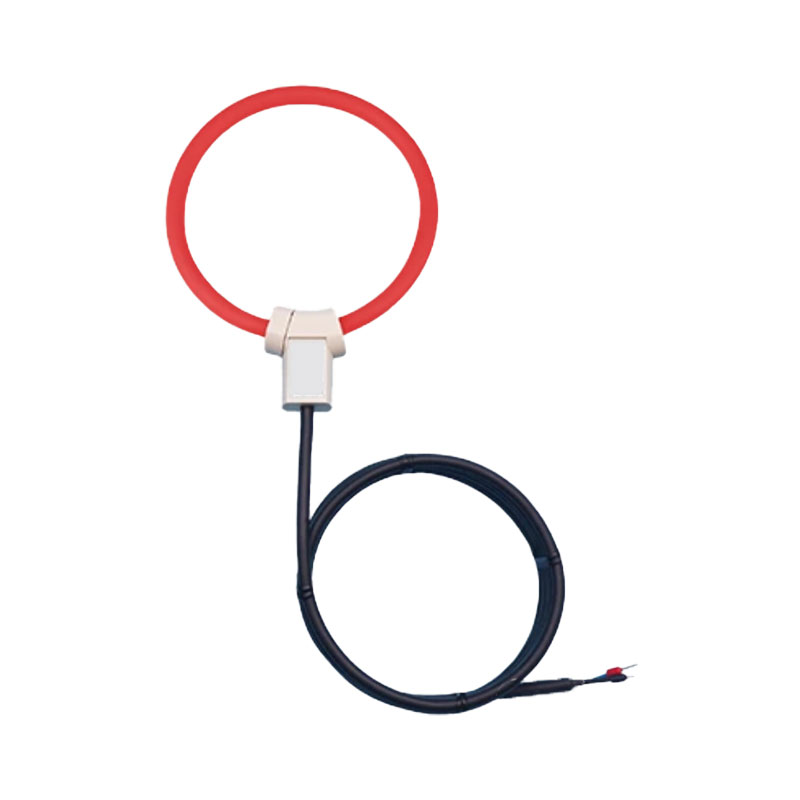

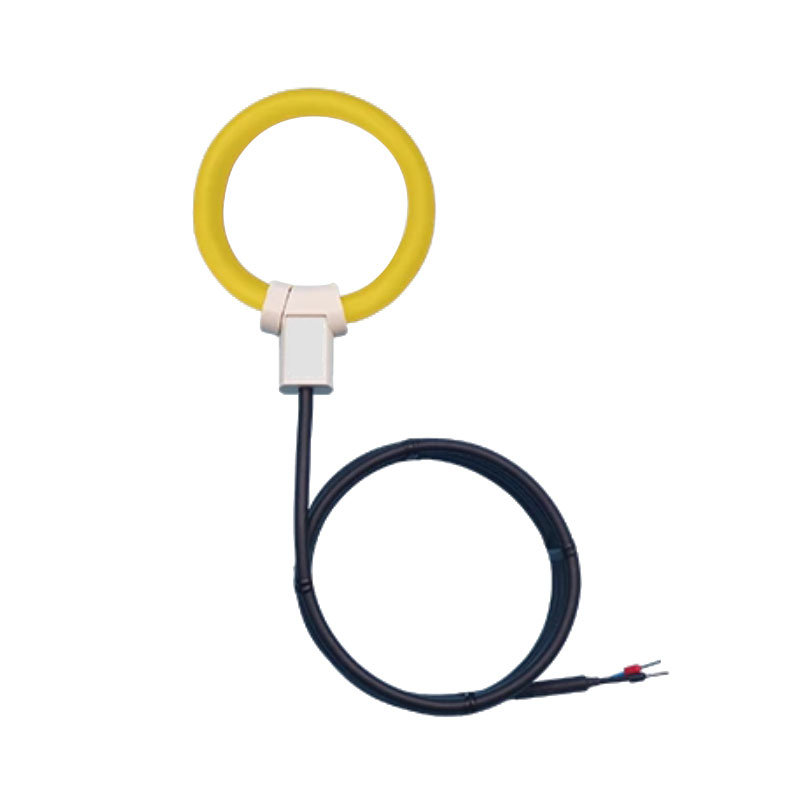

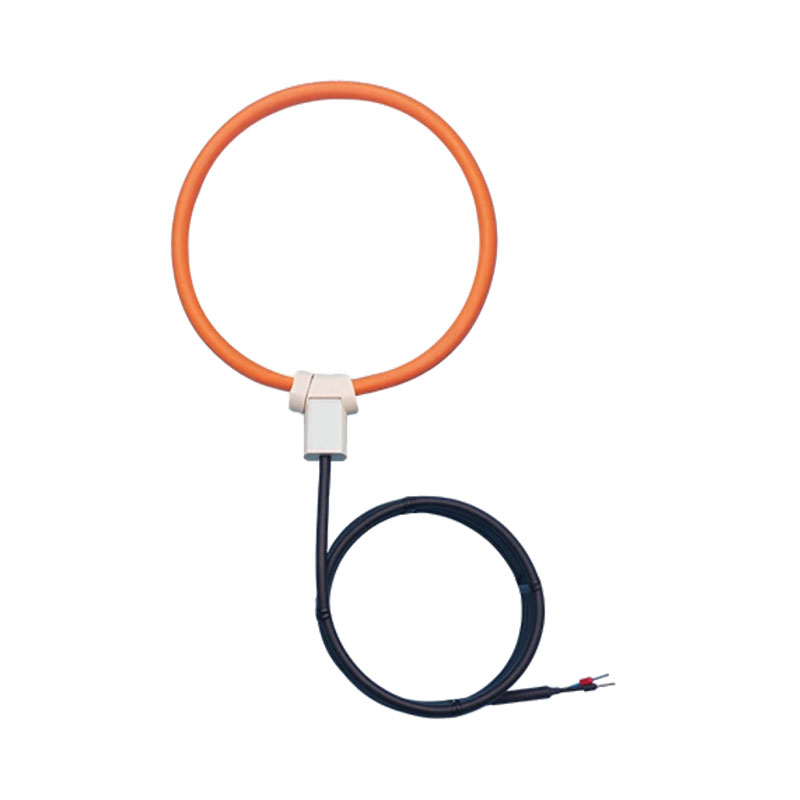

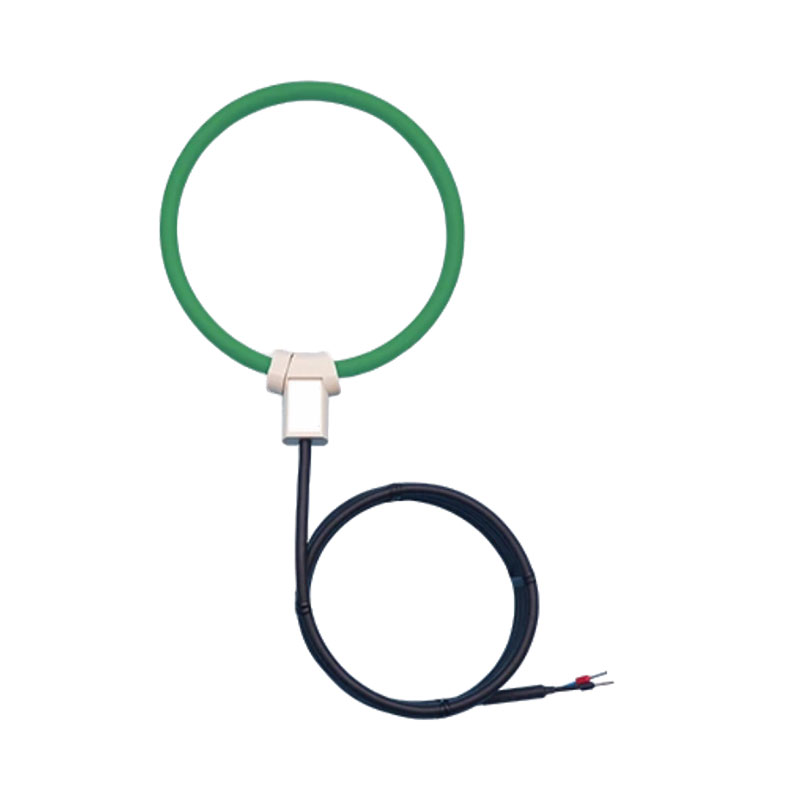

FCT-y is a flexible current sensor that can be directly combined with portable devices such as power analyzers to form a very flexible system.
FCT-y is a flexible current sensor that can be directly combined with portable devices such as power analyzers to form a very flexible system. Suitable for energy consumption monitoring, high-frequency current monitoring, DC ripple measurement, etc. Different sizes can be customized according to requirements.
| MODEL | FCT-y-200 | FCT-y-350 | FCT-y-510 | FCT-y-800 |
| Perimeter | 200 mm | 350 mm | 510 mm | 800 mm |
| Bore size | 50 mm | 100 mm | 150 mm | 240 mm |
| Resistance | 50 - 250 Ω | |||
| Reference current | ≤ 100 kA | |||
| Line length | 2 m, Customizable | |||
| Current range | 1 A - 500 kA | |||
| Calibration | 100 ± 0.5 % mV/kA @ 50 Hz 85 ± 0.5 % mV/kA @ 50 Hz 50 ± 0.5 % mV/kA @ 50 Hz | |||
| Not calibrated | 106 ± 5 % mV/kA @ 50 Hz | |||
| Internal resistance | Uncalibrated 200 ppm/C | |||
| Excellent linearity |
| High dynamic range, 1 A to 500 kA |
| Strong overload capability |
| Low interference from adjacent conductors |
| There is no risk of open circuit and high voltage |
| No danger from open-circuited secondary |
| Zero power consumption |
| Low position error |
| Soft and lightweight, easy to install |
| Good linearity |
