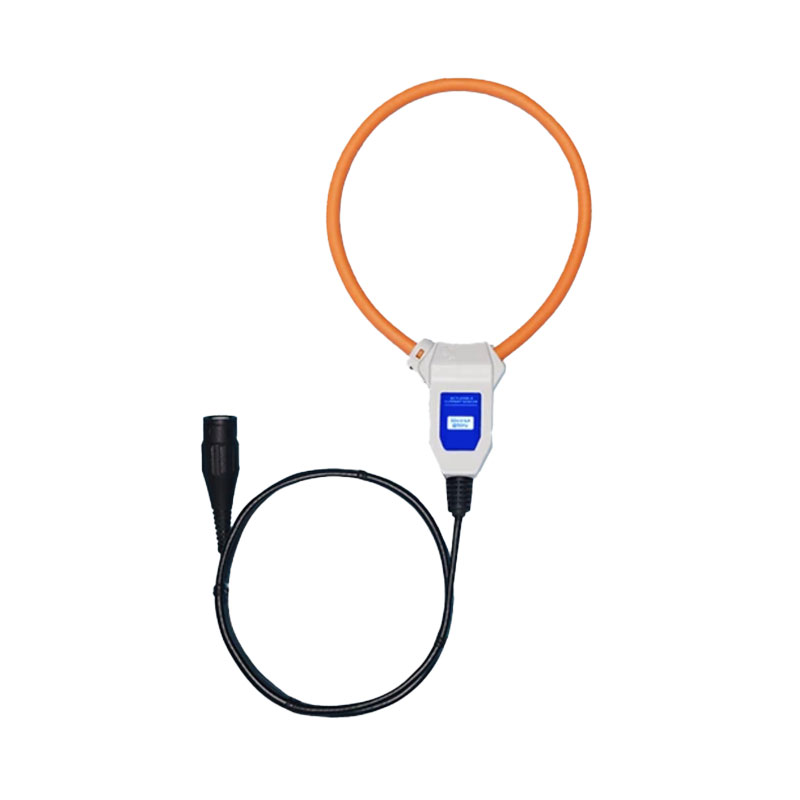

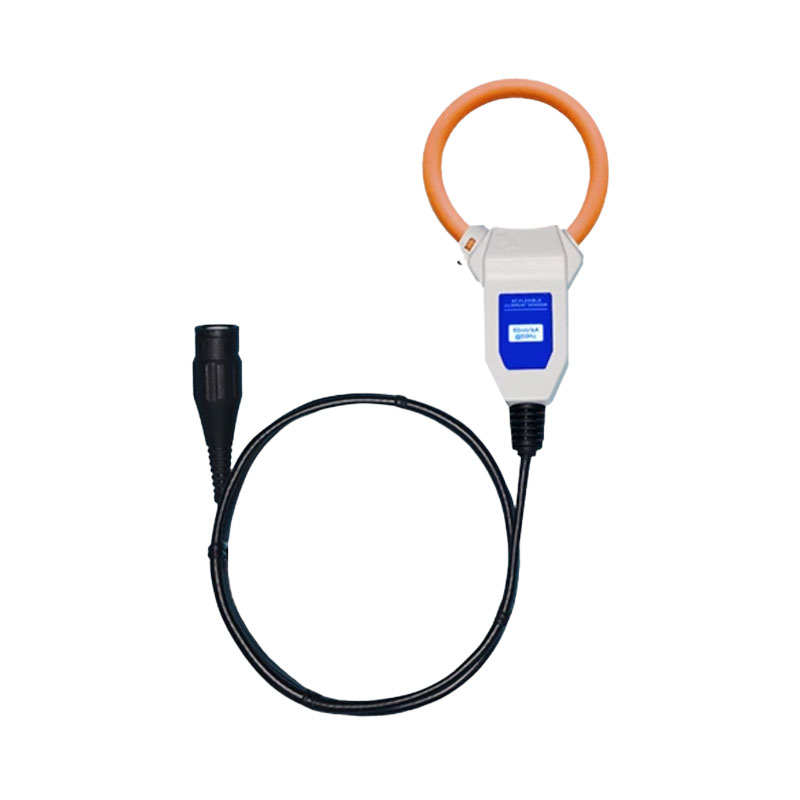

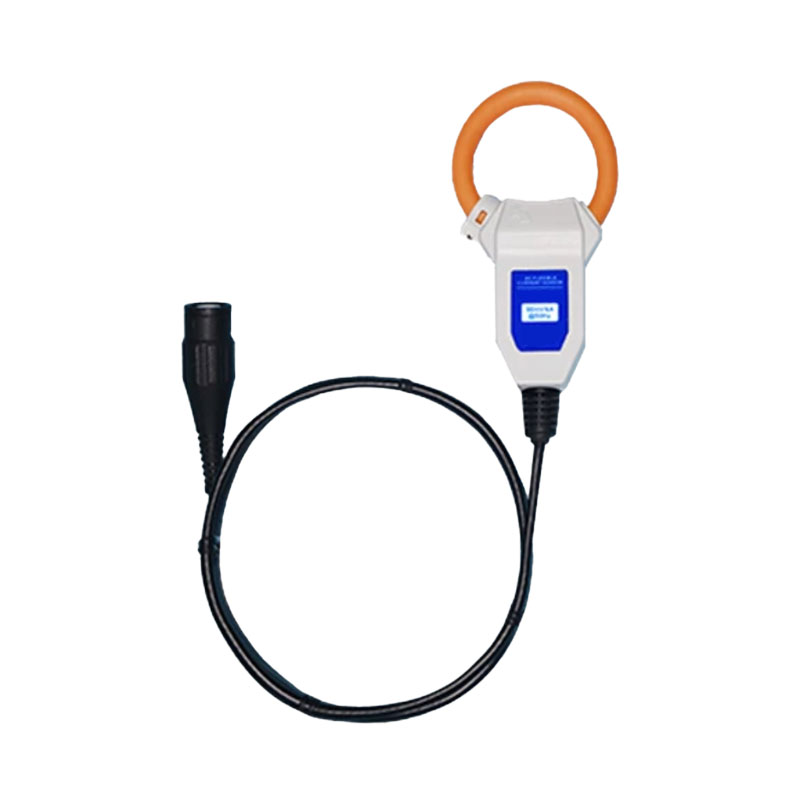

TRCT is a flexible current sensor that can be directly combined with portable devices such as power analyzers to form a very flexible system.
| MODEL | TRCT - 24 | TRCT - 36 | TRCT - 50 | TRCT - 36D |
| Perimeter | 97 mm | 130 mm | 180 mm | 300 mm |
| Internal diameter | 24 mm | 36 mm | 50 mm | 36 mm |
| Reference current | ≤ 500 kA | |||
| Coil resistance | 50 - 300 Ω | |||
| Maximum current | 500 kA | |||
| Signal line length | Default 2 m, customizable | |||
| Calibration | 50 ± 0.2 % mV/kA @ 50 Hz | |||
| Not calibrated | 60 ± 5 % mV/kA @ 50 Hz | |||
| Internal resistance | Uncalibrated 200 ppm/C | |||
| Excellent linearity |
| High dynamic range, 1 A to 500 kA |
| Strong overload capability |
| Little interference from adjacent conductors |
| No danger of open circuit high voltage |
| Zero power consumption |
| Low position error |
| Soft and lightweight, easy to install |
| Good linearity |
TRCT is a flexible current sensor that can be directly combined with portable devices such as power analyzers to form a very flexible system. Suitable for energy consumption monitoring, high-frequency current monitoring, DC ripple measurement, etc. Different sizes can be customized according to requirements.
| Roche coil center | < 0.5 % |
| Coil part | < 1 % |
Do not forcefully pull
Do not bend forcefully
Do not package in a bent state
