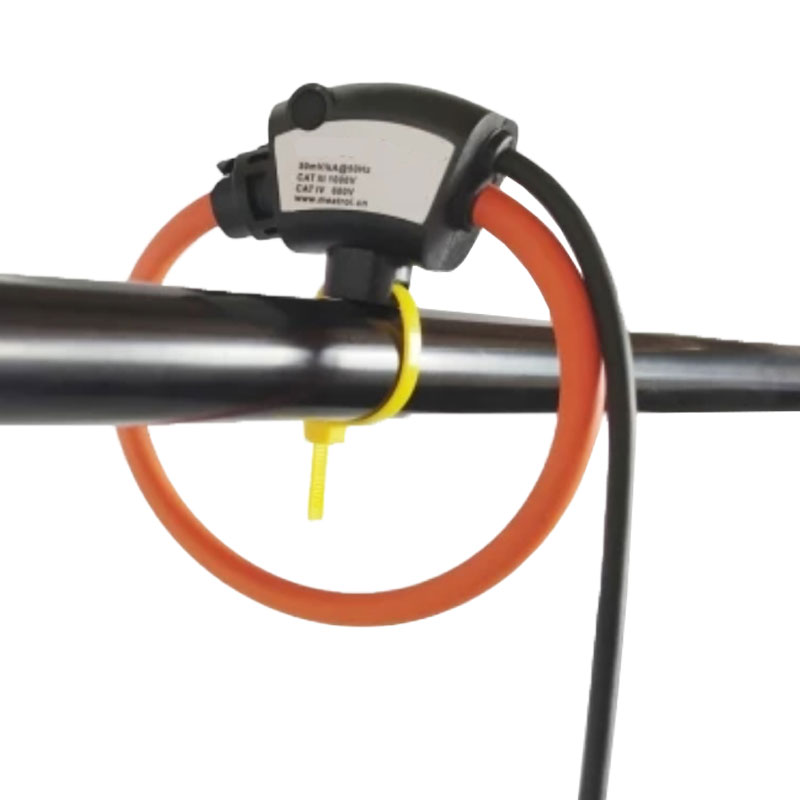

NRCT is a flexible current sensor that can be directly combined with portable devices such as power analyzers to form a very flexible system.
NRCT is a flexible current sensor that can be directly combined with portable devices such as power analyzers to form a very flexible system. Suitable for energy consumption monitoring, high-frequency current monitoring, DC ripple measurement, etc. Different sizes can be customized according to requirements.
| MODEL | NRCT-100 | NRCT-150 | NRCT-200 |
| Perimeter | 395 mm | 525 mm | 665 mm |
| Bore size | 100 mm | 150 mm | 200 mm |
| Reference current | ≤ 500 kA | ||
| Coil resistance | 50 - 250 Ω | ||
| Line length | 2 m, Customizable | ||
| Dynamic range current | 1A - 500 kA | ||
| Calibration | 100 ± 0.5 % mV/kA @ 50 Hz | ||
| Not calibrated | 120 ± 5 % mV/kA @ 50 Hz | ||
| Internal resistance | Uncalibrated 200 ppm/C | ||
| Excellent linearity |
| High dynamic range, 1 A to 500 kA |
| Strong overload capability |
| Low interference from adjacent conductors |
| There is no risk of open circuit and high voltage |
| Zero power consumption |
| Low position error |
| Soft and lightweight, easy to install |
| Good linearity |
