FCT-e

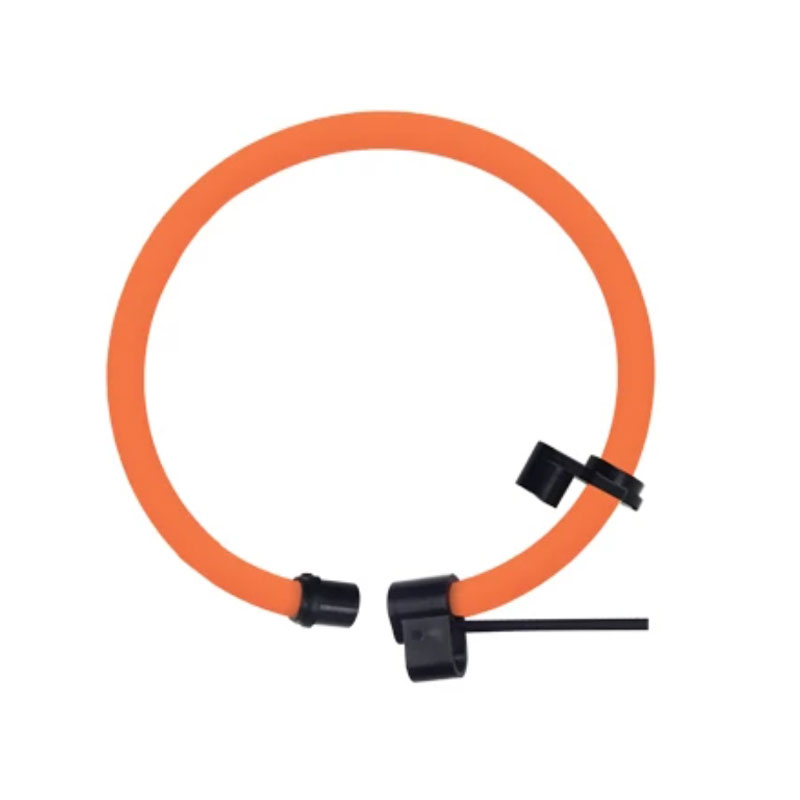

The FCT-e series flexible Roche coil current transformer (FCT) can monitor AC currents up to 100kAmps. They can be opened and flexible, making it easy to install around busbars and multiple wires.

Rated current:10A - 200kA Angle difference:≤ 0.5 °


In Stock

YES

Delivery

10 Days

Warranty

24 months

Select Options

MODEL
- +
Add to inquiry form

Overview

The FCT-e series flexible Roche coil current transformer (FCT) can monitor AC currents up to 100kAmps. They can be opened and flexible, making it easy to install around busbars and multiple wires.

Specification

MODELFCT-e-200FCT-e-240FCT-e-300FCT-e-350
Perimeter50 mm65 mm85 mm100 mm
Bore size200 mm240 mm300 mm350 mm
Uncalibrated32 ± 2 mV/kA @ 50 Hz
Section6 mm
Line length2 m, Customizable
Reference current1 A - 200 kA
Calibration10 ± 2 mV/kA @ 50 Hz
Angle difference ≤ 0.5°
Internal resistance-40 ℃ to 90 ℃


Environmental

Excellent linearity
Zero power consumption
Soft and lightweight, easy to install
Good linearity
No danger of open circuit high voltage
High dynamic range, 1 A to 500 kA
Strong overload capability
Little interference from adjacent conductors
Small position error
