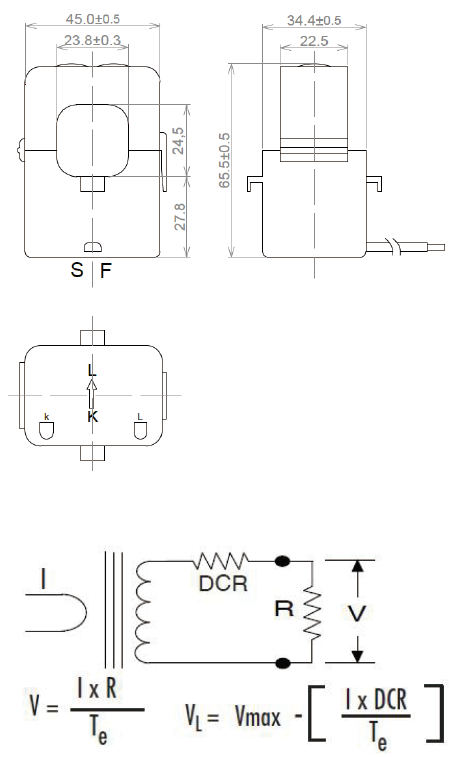

The PCS24 series are split-core current transformers. The CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage. These CTs can be mounted without removing existing cables for easier installation.
Measuring range:0 - 300A; Measurement Frequency:50 - 60Hz; Special indicators: customizable.The PCS24 series are split-core current transformers. The CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage. These CTs can be mounted without removing existing cables for easier installation.
| MODEL | INPUT CURRENT | AVAILABLE OUTPUT |
| PCS24-100 | 100A | CURRENT OUTPUTS @ 20mA, 33.3mA, 40mA, 50mA, 100mA, 1A, 5A, VOLTAGE OUTPUTS @ 0.25V, 0.333V, 0.5V, 1V. 2V Output can be customized by customer |
| PCS24-150 | 150A | |
| PCS24-200 | 200A | |
| PCS24-250 | 250A | |
| PCS24-300 | 300A |
| Energy and sub-metering products |
| Electrical load monitoring |
| Network equipment |
| Instruments and sensors |
| Control systems |
| Go GREEN initiatives |

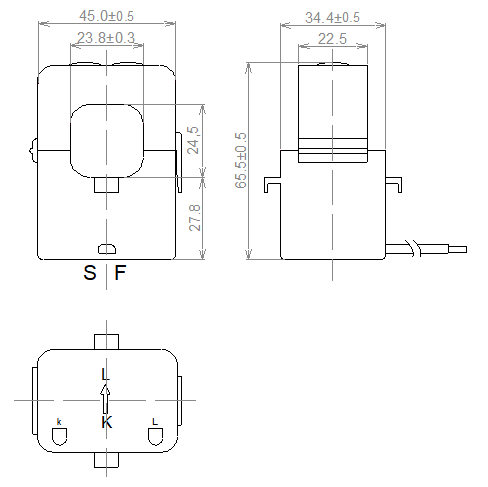

| 0.94” window opening (ID) |
| PVC wire leads - 22 ~ 16AWG |
| Approximate weight 180g |
| Standard Input Current 0 - 300A |
| Frequency 50Hz - 60Hz |
| Standard accuracy 0.5, 1, 3, 5 |
| Insulation Voltage 4000Vac/ 1min |
| Operating Temp. - 40°C to + 60°C |
| Storage Temp. - 45°C to + 85°C |
