The PTS24 series are split-core current transducers. The transducer can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage. These CTs can be mounted without removing existing cables for easier installation.
Measuring range:0 - 300A Measurement Frequency:20 - 5kHz Special indicators: customizableThe PTS24 series are split-core current transducers. The transducer can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage. These CTs can be mounted without removing existing cables for easier installation.
| MODEL | INPUT CURRENT | AVAILABLE OUTPUT |
| PTS24-100 | 100A | POWER SUPPLY @ 18 ~ 30V CURRENT OUTPUTS @ 4 ~ 20mA |
| PTS24-150 | 150A | |
| PTS24-200 | 200A | |
| PTS24-250 | 250A | |
| PTS24-300 | 300A |
| Phase fired controlled heaters |
| Quickly varying motor loads |
| Chopped wave form drivers |
| Current measurements |
| Split Core design |

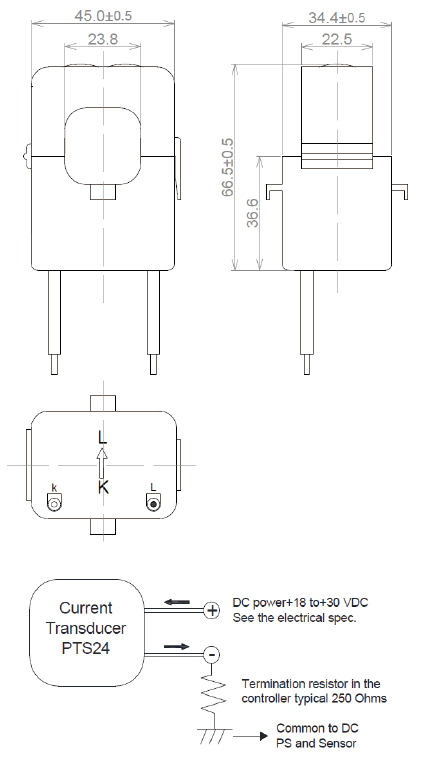

| 4 ‐ 20mA DC output; 18 ‐ 30VDC powered |
| 24 mm windows size |
| 0 ~ 300A current customized |
| Accuracy 1 % |
| PTS24 - 300 300A |
| Frequency range 20Hz ‐ 5kHz |
| Weight 180g |
