PCS120-S Open type transformer


The PCS120-S series are split-core current transformers. The CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage. These CTs can be mounted without removing existing cables for easier installation.

Measuring range:0 - 2500A  Measurement Frequency:50 - 60Hz  Special indicators:customizable.


In Stock

YES

Delivery

10 Days

Warranty

24 months

Select Options

MODEL
- +
Add to inquiry form

Overview

The PCS120-S series are split-core current transformers. The CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage. These CTs can be mounted without removing existing cables for easier installation.

Specification

MODELINPUT CURRENTAVAILABLE OUTPUT
PCS120-1000S1000A

CURRENT OUTPUTS @ 20mA,

40mA, 50mA, 100mA, 1A, 5A

VOLTAGE OUTPUTS @

0.25V, 0.33V, 0.5V, 1V, 2V

 (Output can be customized by customer )

PCS120-1200S1200A
PCS120-1500S1500A
PCS120-2000S2000A
PCS120-2500S2500A


Environmental

Energy and sub-metering products
Electrical load monitoring
Network equipment
Instruments and sensors
Control systems
Go GREEN initiatives

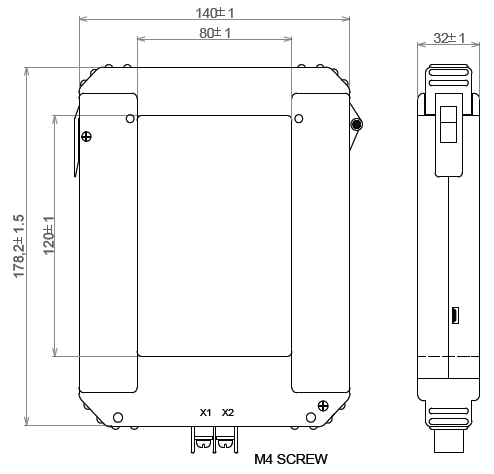

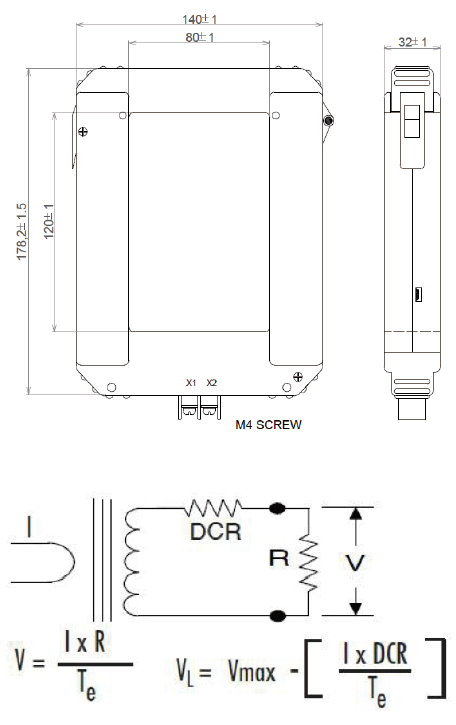

3.15*4.72” window opening (ID)
M4 terminal output
Approximate weight 950g
Rated amp 0 - 2500A
Frequency 50Hz - 60Hz
Standard accuracy 0,5, 1
Insulation Voltage 4000Vac/1min
Operating Temp. - 40°C to + 30°C
Storage Temp. - 45°C to + 85°C
