PCS12 Open type transformer


The PCS12 Series are split-core current transformers. The CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage. These CTs can be mounted without removing existing cables for easier installation.

Measuring range:0 - 100A  Measurement Frequency:50 - 60Hz  Special indicators: customizable.


In Stock

YES

Delivery

10 Days

Warranty

24 months

Select Options

MODEL
- +
Add to inquiry form

Overview

The PCS12 Series are split-core current transformers. The CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage. These CTs can be mounted without removing existing cables for easier installation.

Specification

MODELINPUT CURRENTAVAILABLE OUTPUT
PCS12-3030A

CURRENT OUTPUTS @ 5mA,

10mA, 20mA, 33.3mA, 40mA, 200mA

VOLTAGE OUTPUTS @

0.25V, 0.33V,1V,2V

 ( Output can be customized

by customer )

PCS12-5050A
PCS12-6060A
PCS12-8080A
PCS12-100100A


Environmental

Energy and sub-metering products
Electrical load monitoring
Network equipment
Instruments and sensors
Control systems
Go GREEN initiatives

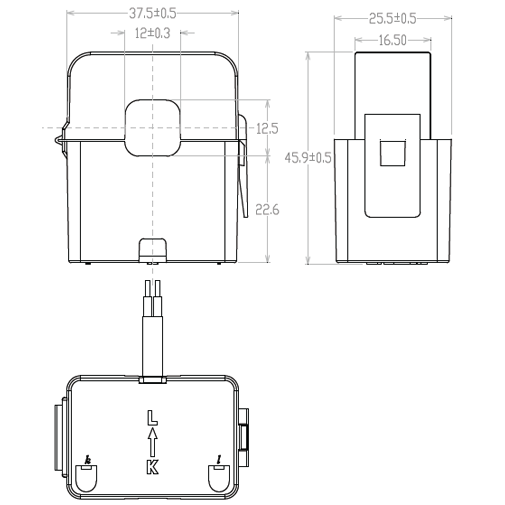

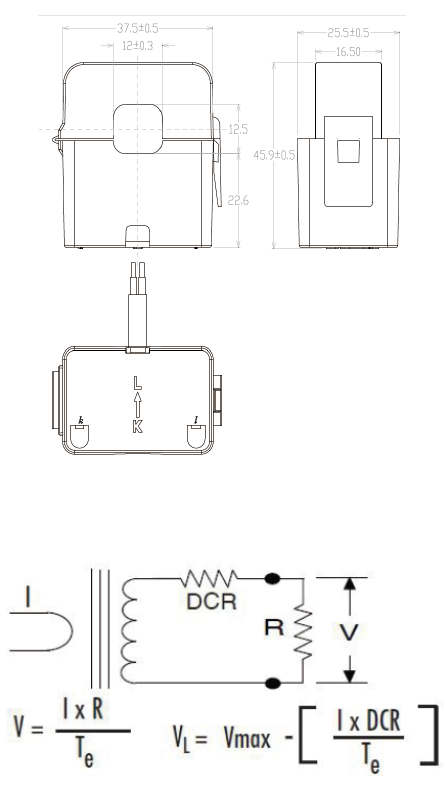

0.47” window opening (ID)
Custom design Turns-Ratio available
Approximate weight 70g
Standard Input Current 0 - 100A
Frequency 50Hz - 60Hz
Standard accuracy 0.5, 1, 3
Insulation Voltage 4000Vac/ 1min
Operating Temp. - 40°C to + 65°C
Storage Temp. - 45°C to + 85°C
