The PCS110-C series are clamp-on current transformers. The CT canbe mounted to existing panels, such as control centers or load centers,to measure or monitor wattage. These CTs can be mounted withoutremoving existing cables for easier installation.
Measuring range:0 - 1000 A Measurement Frequency:50 - 60 Hz Special indicators: customizable.The PCS110-C series are clamp-on current transformers. The CT canbe mounted to existing panels, such as control centers or load centers,to measure or monitor wattage. These CTs can be mounted withoutremoving existing cables for easier installation.
| MODEL | INPUT CURRENT | AVAILABLE OUTPUT |
| PCS110500-C | 500 A | CURRENT OUTPUTS @ 1 A, 5 A |
| PCS110600-C | 600 A | |
| PCS110700-C | 700 A | |
| PCS110800-C | 800 A | |
| PCS1101000-C | 1000 A |
| Energy and sub-metering products |
| Electrical load monitoring |
| Network equipment |
| Instruments and sensors |
| Control systems |
| Go GREEN initiatives |

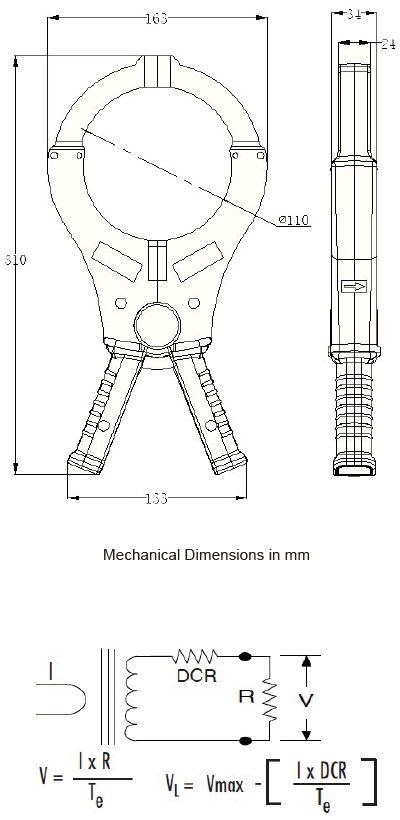

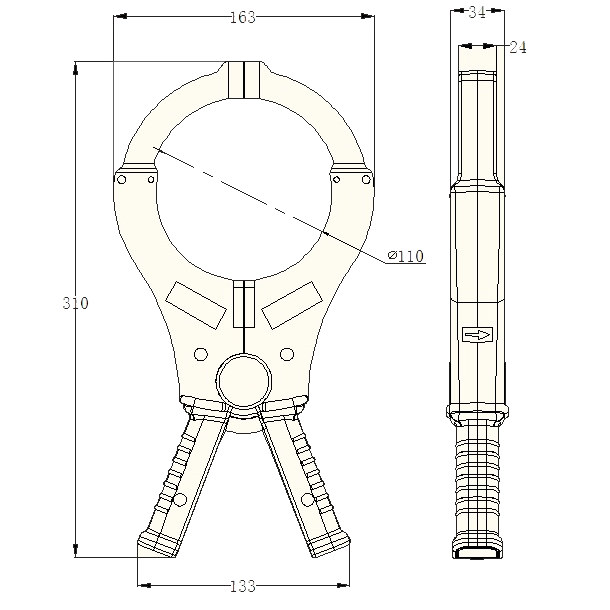

| 4 .3 3 ”windowopening(ID) |
| Custom design Turns-Ratio available |
| Approximate weight 1000 g |
| Standard Input Current 0 - 1000 A |
| Frequency 50 Hz - 60 Hz |
| Standard accuracy 0.5, 1 |
| Insulation Voltage 4000 Vac / 1 min |
| Operating Temp. - 40 °C to + 70 °C |
| Storage Temp. - 45 °C to + 85 °C |
