The PCH60 series current transformer is compact、smaller than other models with the current ratio of the transformer is small, clamshell-style terminal cover is well protected for the second terminal.
YES
10 Days
24 months
The PCH60 series current transformer is compact、smaller than other models with the current ratio of the transformer is small, clamshell-style terminal cover is well protected for the second terminal.
| MODEL | INPUT CURRENT | AVAILABLE OUTPUT |
| PCH60-300 | 300 A | CURRENT OUTPUTS @50 mA, 100 mA, 1 A, 5 A Voltage OUTPUTS @ 0.333 V, 0.5 V, 1 V, 2 V Output can be customized by customer |
| PCH60-400 | 400 A | |
| PCH60-500 | 500 A | |
| PCH60-600 | 600 A | |
| PCH60-800 | 800 A | |
| PCH60-1000 | 1000 A | |
| PCH60-1200 | 1200 A |
| Energy and sub-metering products |
| Electrical load monitoring |
| Network equipment |
| Instruments and sensors |
| Control systems |
| Go GREEN initiatives |

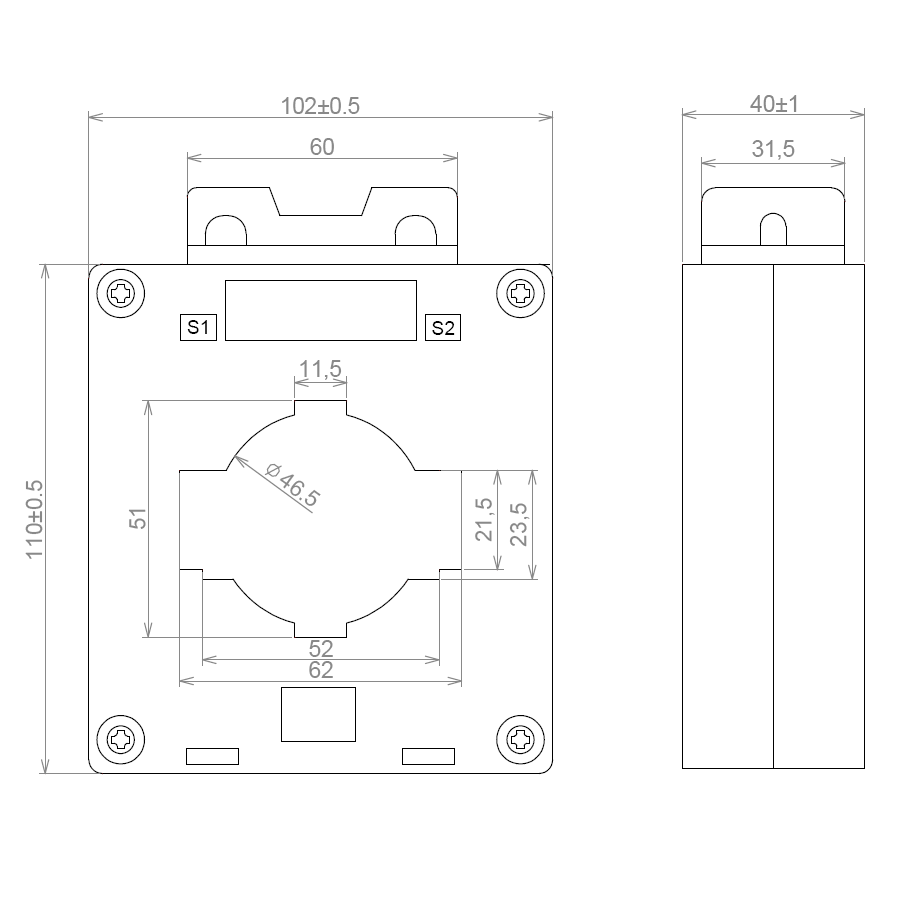

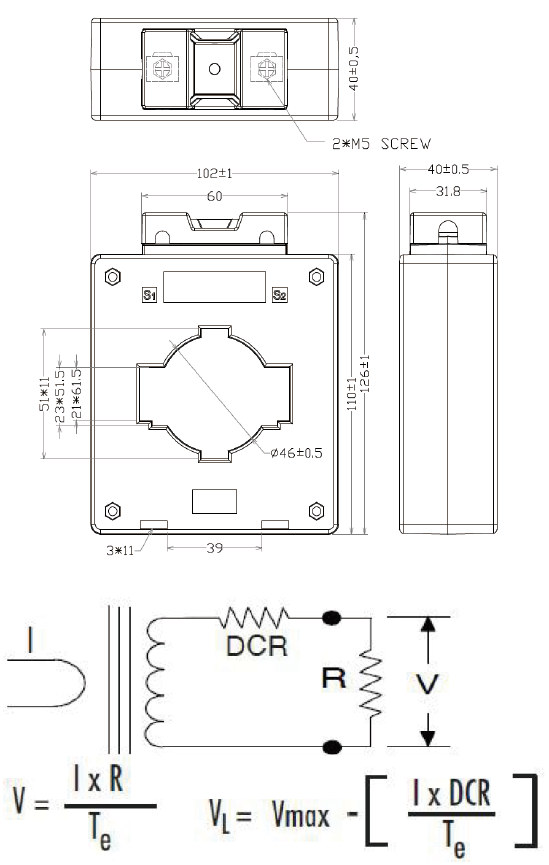

| 21 x 61.5 window size |
| Output Terminal: M5 terminal |
| Approximate weight 500 g |
| Standard Input Current 0 - 1200 A |
| Frequency 50 Hz - 60 Hz |
| Standard accuracy 0.1, 0.2, 0.5, 1, 3 |
| Insulation Voltage 4000 Vac / 1 min |
| Operating Temp. - 40 °C to + 65 °C |
| Storage Temp. - 45 °C to + 85 °C |
