The PCH40 series current transformer is compact、smaller thanother models with the current ratio of the transformer is small, clamshell-style terminal cover is well protected for the secondterminal.
YES
10 Days
24 months
The PCH40 series current transformer is compact、smaller thanother models with the current ratio of the transformer is small, clamshell-style terminal cover is well protected for the secondterminal.
MODEL | INPUT CURRENT | AVAILABLE OUTPUT |
PCH40-150 | 150 A | CURRENT OUTPUTS @ 50 mA, 100 mA, 1 A, 5 A Voltage OUTPUTS @0.333 V, 0.5 V, 1 V, 2 V, Output can be customizedby customer |
PCH40-200 | 200 A | |
PCH40-250 | 250 A | |
PCH40-300 | 300 A | |
PCH40-400 | 400 A | |
PCH40-500 | 500 A | |
PCH40-600 | 600 A |
Energy and sub-metering products |
Electrical load monitoring |
Network equipment |
Instruments and sensors |
Control systems |
Go GREEN initiatives |

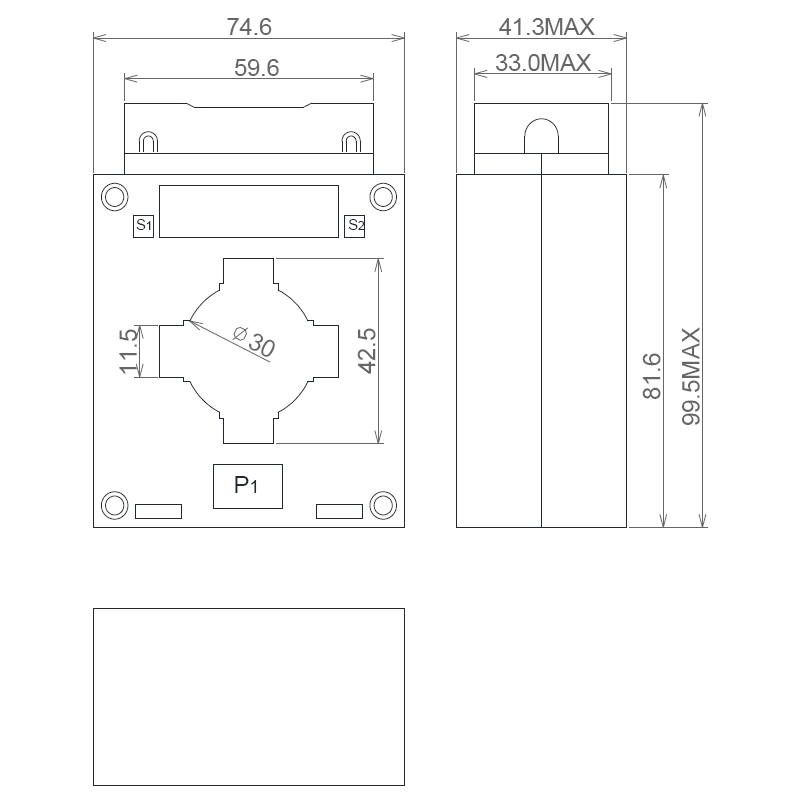

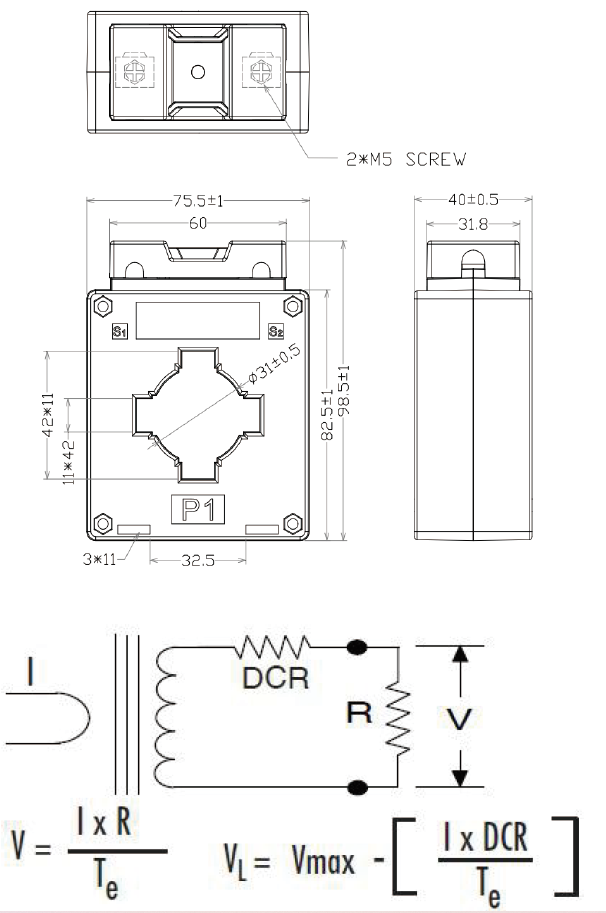

11 x 42mm window size |
Custom design Turns-Ratio available |
Approximate weight 450 g |
Standard Input Current 0 - 600 A |
Frequency 50 Hz - 60 Hz |
Standard accuracy 0.1, 0.2, 0.5, 1, 3 |
Insulation Voltage 4000 Vac / 1 min |
Operating Temp. - 40 °C to + 65 °C |
Storage Temp. - 45 °C to + 85 °C |
