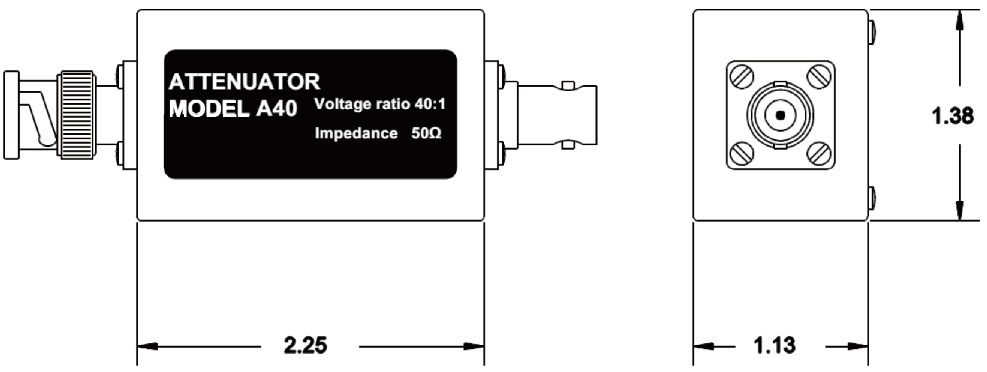

The attenuation ratio of A40 is 40:1, which will attenuate the measured voltage by 40 times; Within the specified bandwidth range, the output accuracy reaches 1%.
The attenuation ratio of A40 is 40:1, which attenuates the measured voltage 40 times; within the specified bandwidth range, the output The accuracy reaches 1%. The impedance of the input and output terminals is 50 ohms, and the connectors of the signal input and output terminals are standard BNC connectors. The signal can be input from any end, and the other end is used as the output end. There is no directionality.
| Voltage ratio | 40:1 ( -32dB ) |
| Midband accuracy | ±1% |
| Input resistance | 50Ω |
| Output resistance | 50Ω |
| Maximum peak voltage | 500V |
| Maximum RMS voltage | 7.5V |
| Useable rise time | 5ns |
| Low frequency | DC |
| High frequency ±1dB | 100MHz |
| Connectors | BNC |
| Operating temperature | 0 to 65℃ |
| Weight | 141.75g |
