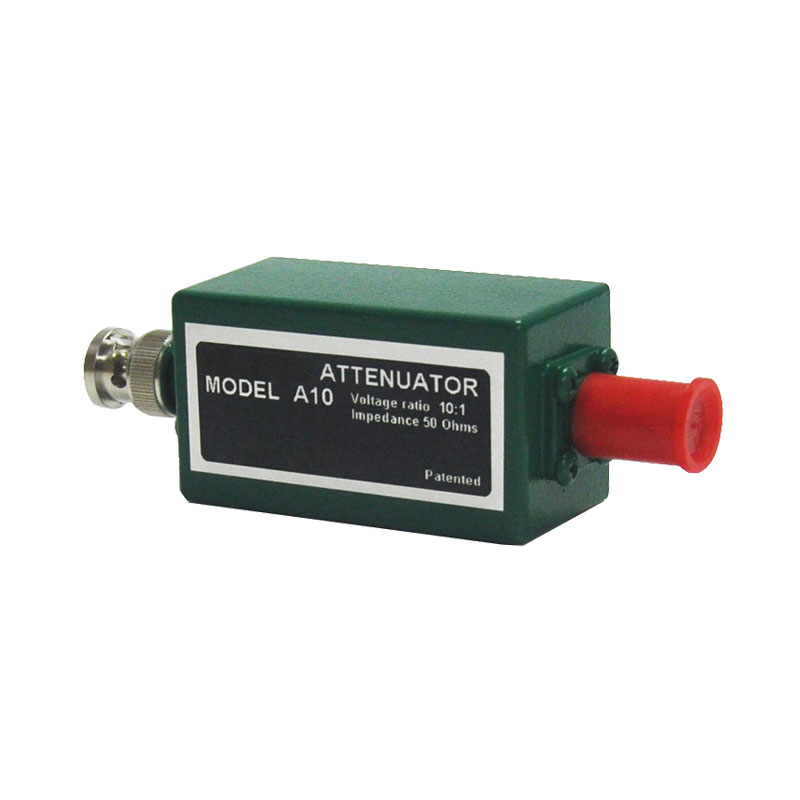

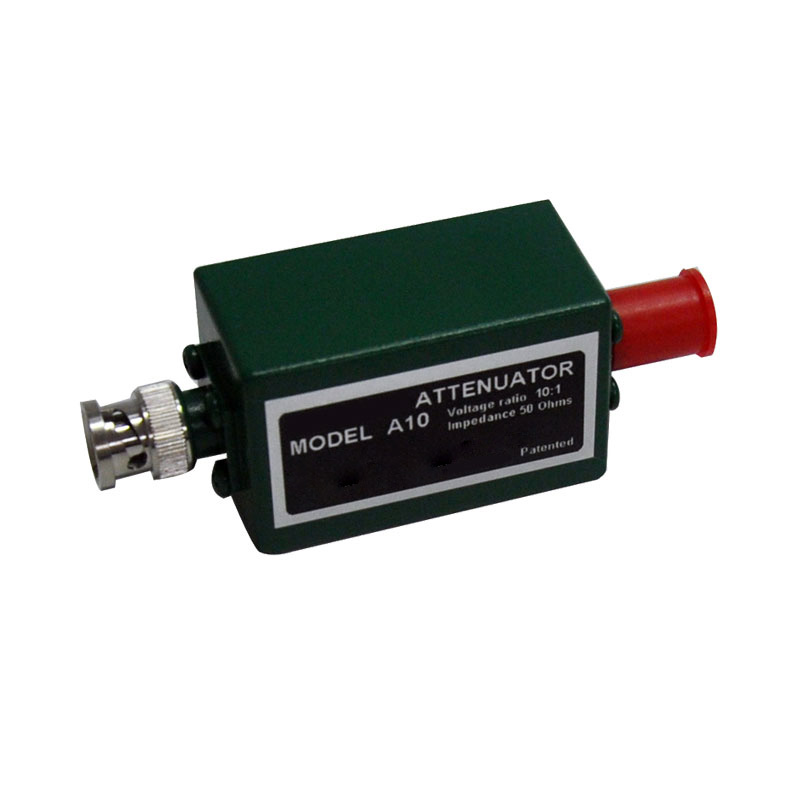

A10

A10 provides a voltage attenuation ratio of 10:1, which can attenuate the measured voltage signal by 10 times and maintain the complete waveform of the output signal.

Voltage ratio:10:1 (–20dB) Midband accuracy:±1% Input resistance:50Ω


In Stock

YES

Delivery

10 Days

Warranty

12 months

Overview

The Model A10 attenuator may be used with all standard  Current Monitors, except Model 2093, to reduce signal output voltageby a factor of 10. All maximum ratings of these models are preserved.The attenuator is symmetrical and can be used in either direction.

Electrical

Voltage ratio10:1(-20dB)
Midband accuracy±1%
Input resistance50Ω
Output resistance50Ω
Maximum peak voltage500V
Maximum RMS voltage7.5V
Useable rise time5ns
Low frequencyDC
High frequency ±1dB100MHZ
ConnectorsBNC
Operating temperature
0 to 65℃
Weight141.75g

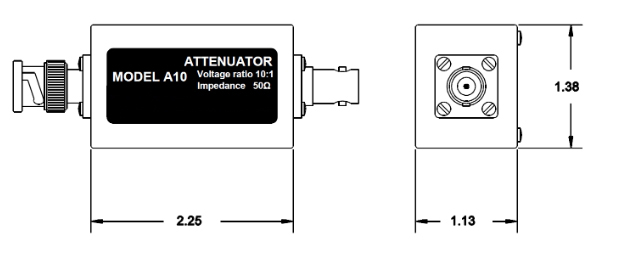

Dimension


undefined
