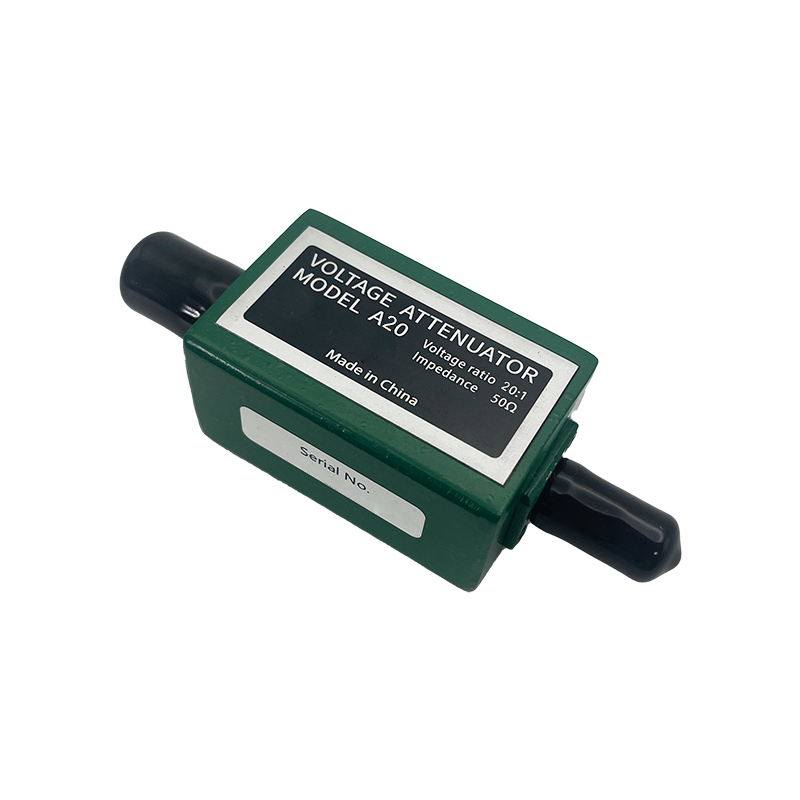

A20 provides a voltage attenuation ratio of 20:1, which can attenuate the measured voltage signal by 20 times and maintain the complete
waveform of the output signal.

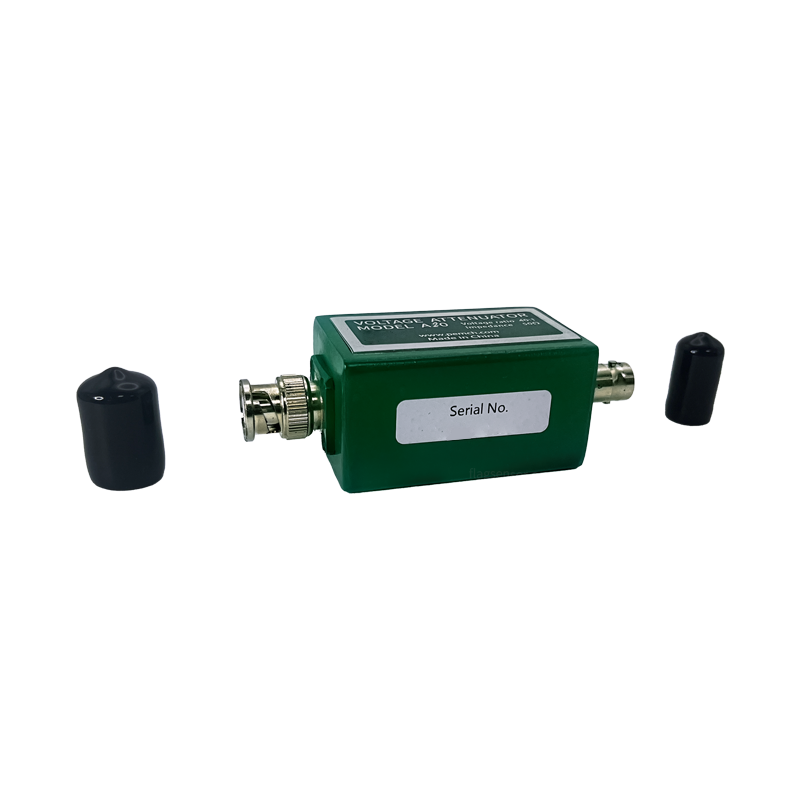

The attenuation ratio of A20 is 20:1, which will attenuate the measured voltage by 20 times; Within the specified bandwidth range, the output accuracy reaches 1%. The impedance of the input and output terminals is 50Ω, and the connectors for the signal input and output terminals are standard BNC connectors. The signal can be input from any end and the other end serves as the output end, without directionality.
| Voltage ratio | 20:1 (-26dB) |
| Midband accuracy | ±1% |
| Input resistance | 50Ω |
| Output resistance | 50Ω |
| Maximum peak voltage | 500V |
| Maximum RMS voltage | 7.5V |
| Useable rise time | 5ns |
| Low frequency | DC |
| High frequency ±1dB | 100MHZ |
| Connectors | BNC |
| Operating temperature | 0 to 65℃ |
| Weight | 141.75g |
