SRCT

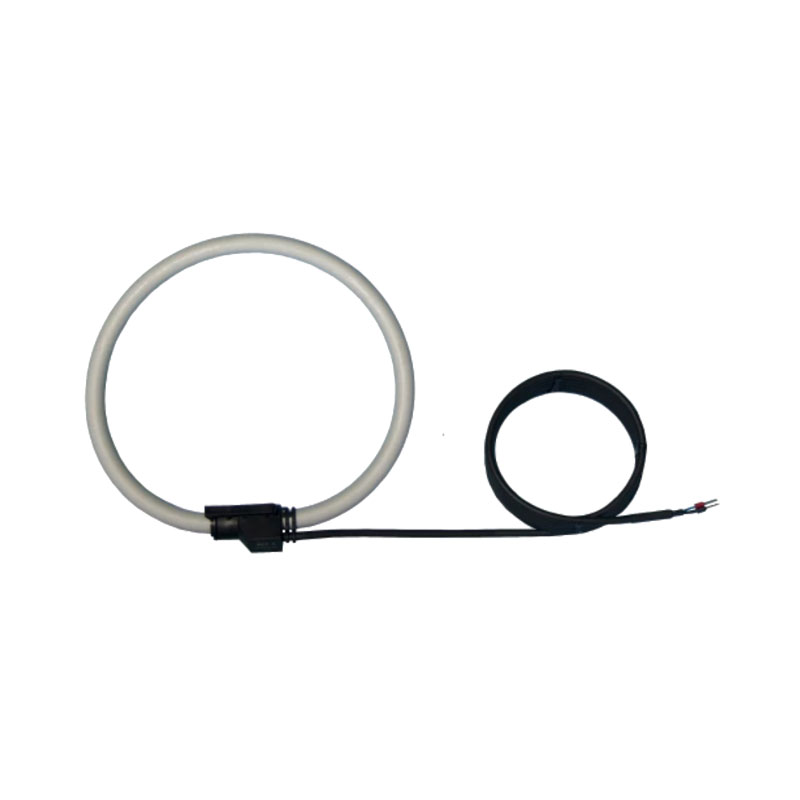

SRCT is a flexible current sensor that can be directly combined with portable devices such as power analyzers to form a very flexible system.

Current:≤ 500 kA Maximum current:500 kA  Coil resistance:50 - 500 Ω


In Stock

YES

Delivery

10 Days

Warranty

24 months

Select Options

MODEL
- +
Add to inquiry form

Electronical

MODELSRCT-50SRCT-100SRCT-150 SRCT-150
Perimeter255 mm405 mm565 mm705 mm
Internal diameter50 mm100 mm150 mm200 mm
Reference current≤ 500 kA
Coil resistance50 - 500 Ω
Maximum current500 kA
Signal line lengthDefault 2 m, customizable
Calibration333 ± 0.5 % mV/kA @ 50 Hz    240 ± 0.5 % mV/kA @ 50 Hz    120 ± 0.5 % mV/kA @ 50 Hz
Not calibrated360 ± 5 % mV/kA @ 50 Hz    120 ± 5 %mV/kA @ 50 Hz    106 ± 5 % mV/kA @ 50 Hz
Internal resistanceUncalibrated 200 ppm/C


Specification

Excellent linearity
High dynamic range, 1 A to 500 kA
Strong overload capability
Little interference from adjacent conductors
No danger of open circuit high voltage
Zero power consumption
Low position error
Soft and lightweight, easy to install
Good linearity

Overview

SRCT is a flexible current sensor that can be directly combined with portable devices such as power analyzers to form a very flexible system. Suitable for energy consumption monitoring, high-frequency current monitoring, DC ripple measurement, etc. Different sizes can be customized according to requirements.

Environmental

Roche coil center< 0.5 %
Coil part1 %

ATTENTION

Do not forcefully pull


Do not bend forcefully

Do not package in a bent state
