The PCS80 Series are split-core current transformers. The CT canbe mounted to existing panels, such as control centers or loadcenters, to measure or monitor wattage. These CTs can be mountedwithout removing existing cables for easier installation.
Measuring range:0 - 1600 A Measurement Frequency:50 - 60 Hz Special indicators: customizable.The PCS80 Series are split-core current transformers. The CT canbe mounted to existing panels, such as control centers or loadcenters, to measure or monitor wattage. These CTs can be mountedwithout removing existing cables for easier installation.
| MODEL | INPUT CURRENT | AVAILABLE OUTPUT |
| PCS80-500 | 500 A | CURRENT OUTPUTS @ 20 mA, 40 mA, 50 mA, 100 mA, 1 A, 5 A VOLTAGE OUTPUTS @ 0.25 V, 0.33 V,0.5 V, 1 V, 2 V (Output can be customized by customer) |
| PCS80-600 | 600 A | |
| PCS80-800 | 800 A | |
| PCS80-1000 | 1000 A | |
| PCS80-1200 | 1200 A | |
| PCS80-1600 | 1600 A |
| Energy and sub-metering products |
| Electrical load monitoring |
| Network equipment |
| Instruments and sensors |
| Control systems |
| Go GREEN initiatives |

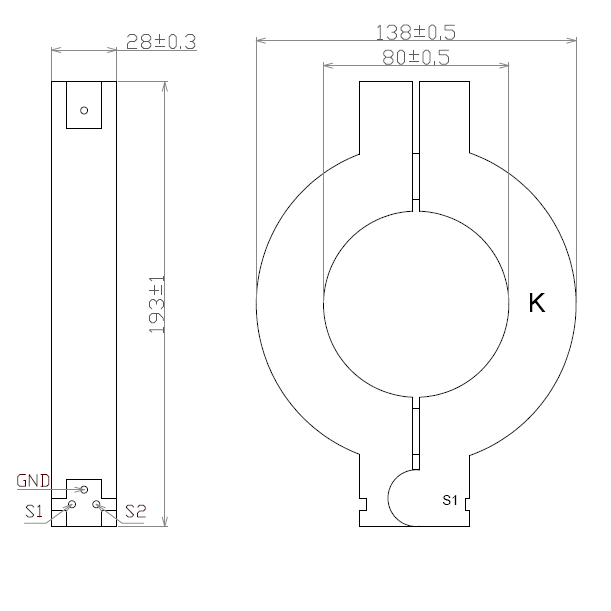

| 3.15” window opening (ID) |
| Custom design Turns-Ratio available |
| Approximate weight 550 g |
| Standard Input Current 0 - 1600 A |
| Frequency 50 Hz - 60 Hz |
| Standard accuracy 0.5, 1, 3 |
| Insulation Voltage 4000 Vac/ 1 min |
| Operating Temp. - 40 °C to + 65 °C |
| Storage Temp. - 45 °C to + 85 °C |
