The PCS50-S series are split-core current transformers. The CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage. These CTs can be mounted without removing existing cables for easier installation.
Measuring range :5 - 600A Measurement frequency:50 - 60Hz Special indicators:CustomizableThe PCS50-S series are split-core current transformers. The CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage. These CTs can be mounted without removing existing cables for easier installation.
| MODEL | INPUT CURRENT | AVAILABLE OUTPUT |
| PCS50-100S | 100A | CURRENT OUTPUTS @ 20mA, 40mA, 50mA, 100mA, 1A, 5AVOLTAGE OUTPUTS @ 0.25V, 0.333V, 0.5V, 1V, 2V (Output can be customized by customer） |
| PCS50-200S | 200A | |
| PCS50-300S | 300A | |
| PCS50-400S | 400A | |
| PCS50-500S | 500A | |
| PCS50-600S | 600A |
| Energy and sub-metering products |
| Electrical load monitoring |
| Network equipment |
| Instruments and sensors |
| Control systems |
| Go GREEN initiatives |

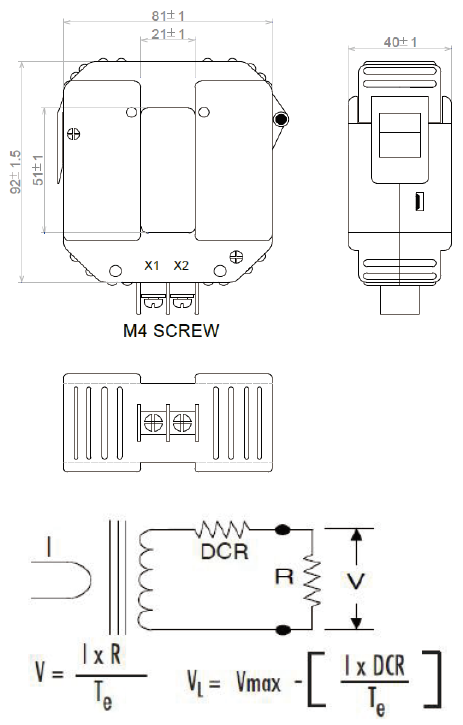

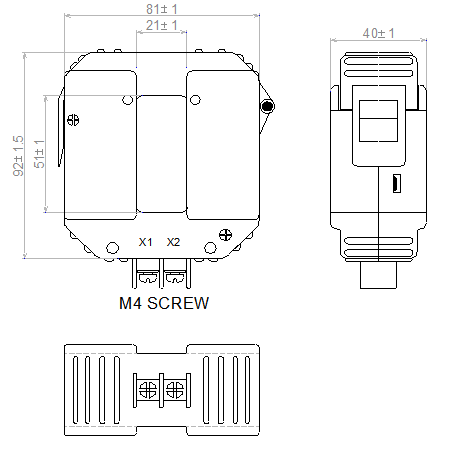

| 0.83*2.01” window opening (ID) |
| M4 terminal output |
| Approximate weight 500g |
| Standard Input Current 5 - 600A |
| Frequency 50Hz - 60Hz |
| Standard accuracy 0.5, 1 |
| Insulation Voltage 4000 Vac/1min |
| Operating Temp. - 40°C to + 50°C |
| Storage Temp. - 45°C to + 85°C |
