PCS40-S Open type transformer


The PCS40-S series are split-core current transformers. The CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage. These CTs can be mounted without removing existing cables for easier installation.

Measuring range:0 - 600 A Measurement Frequency:50 - 60 Hz Special indicators: customizable.


In Stock

YES

Delivery

10 Days

Warranty

24 months

Select Options

MODEL
- +
Add to inquiry form

Overview

The PCS40-S series are split-core current transformers. The CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage. These CTs can be mounted without removing existing cables for easier installation.

Specification

MODELINPUT CURRENTAVAILABLE OUTPUT
PCS40-100S100 ACURRENT OUTPUTS @
20 mA,
40 mA, 50 mA, 100 mA, 1 A, 5 A
VOLTAGE OUTPUTS @

0.25 V, 0.333 V, 0.5 V, 1 V, 2 V

(Output can be customized

by customer)

PCS40-200S200 A
PCS40-300S300 A
PCS40-400S400 A
PCS40-500S500 A
PCS40-600S600 A


Environmental

Energy and sub-metering products
Electrical load monitoring
Network equipment
Instruments and sensors
Control systems
Go GREEN initiatives

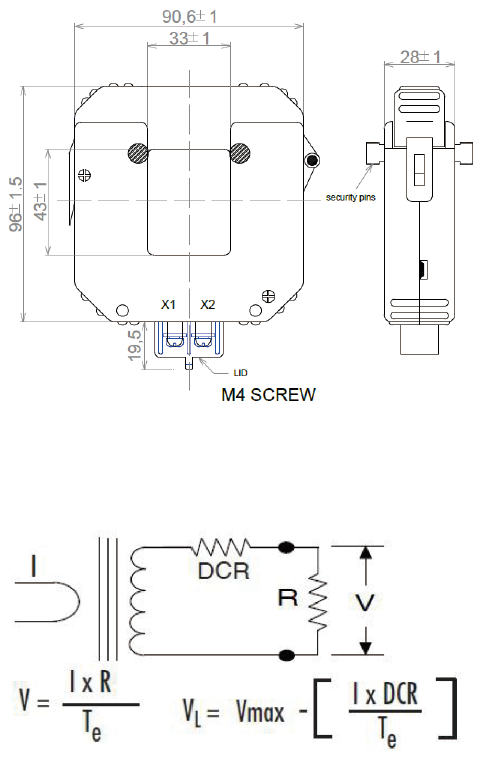

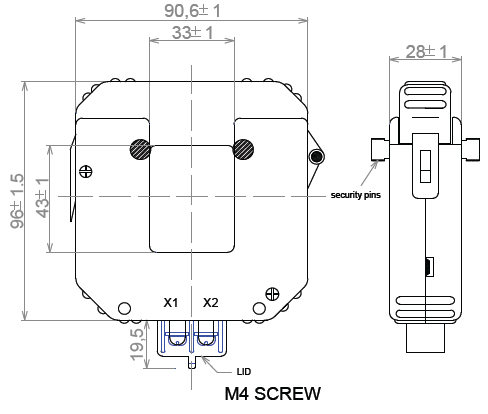

1.30*1.69” window opening (ID)
Custom design Turns-Ratio available
Approximate weight 500 g
Standard Input Current 0 - 600 A
Frequency 50 Hz - 60 Hz
Standard accuracy 0.5, 1, 3
Insulation Voltage 4000 Vac/1min
Operating Temp. - 40 °C to + 65 °C
Storage Temp. - 45 °C to + 85 °C
