The PCS25 series are split-core current transformers. The CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage. These CTs can be mounted without removing existing cables for easier installation.
Measuring range:0-400A Measurement Frequency:50-60Hz Special indicators:customizable.The PCS25 series are split-core current transformers. The CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage. These CTs can be mounted without removing existing cables for easier installation.
| MODEL | INPUT CURRENT | AVAILABLE OUTPUT |
| PCS25-100 | 100 A | CURRENT OUTPUTS @ 20mA, 33.3mA, 40mA, 50mA,100mAVOLTAGE OUTPUTS @ 0.25V, 0.333V, 0.5V, 1V, 2V (Output can be customized by customer) |
| PCS25-150 | 150 A | |
| PCS25-200 | 200 A | |
| PCS25-250 | 250 A | |
| PCS25-300 | 300 A | |
| PCS25-400 | 400 A |
| Energy and sub-metering products |
| Electrical load monitoring |
| Network equipment |
| Instruments and sensors |
| Control systems |
| Go GREEN initiatives |

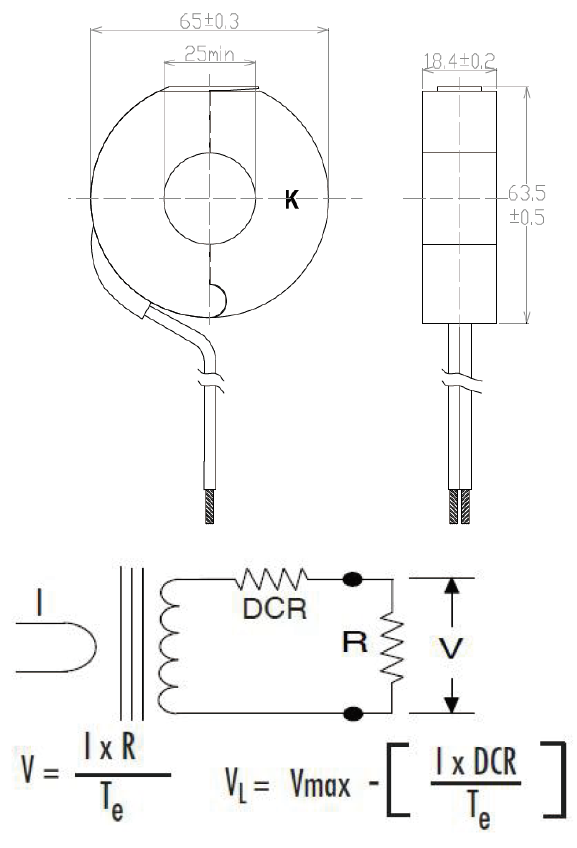

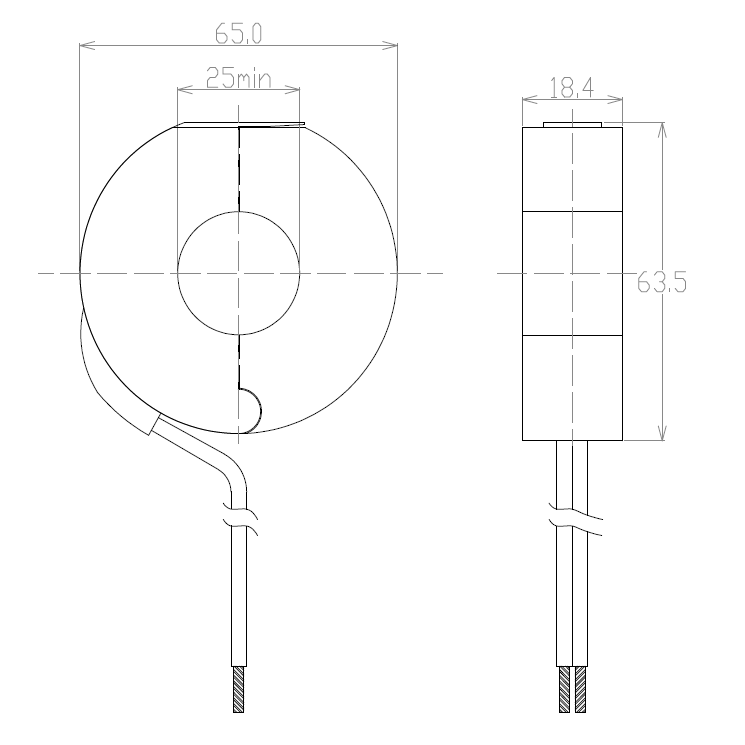

| 0.94” window opening (ID) |
| Custom design Turns-Ratio available |
| Approximate weight 180 g |
| Standard Input Current 0 - 400 A |
| Frequency 50 Hz - 400 Hz |
| Standard accuracy 0.5,1 |
| Insulation Voltage 4000 Vac/1min |
| Operating Temp. -40 °C to +60 °C |
| Storage Temp. -45 °C to +85 °C |
