The PCS06 series are split-core current transformers. The CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage. These CTs can be mounted without removing existing cables for easier installation.
Measuring range:0 - 25 A Measurement Frequency:50 - 60 Hz Special indicators: customizable.The PCS06 series are split-core current transformers. The CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage. These CTs can be mounted without removing existing cables for easier installation.
| MODEL | INPUT CURRENT | AVAILABLE OUTPUT |
| PCS06-05 | 5 A | CURRENT OUTPUTS @ 5 mA,10 mA, 20 mA, 25 mA 33.3 mA VOLTAGE OUTPUTS @ 0.25 V, 0.33 V, 0.5 V, 1 VOutput can be customized by customer |
| PCS06-10 | 10 A | |
| PCS06-15 | 15 A | |
| PCS06-20 | 20 A | |
| PCS06-25 | 25 A |
| Energy and sub-metering products |
| Electrical load monitoring |
| Network equipment |
| Instruments and sensors |
| Control systems |
| Go GREEN initiatives |

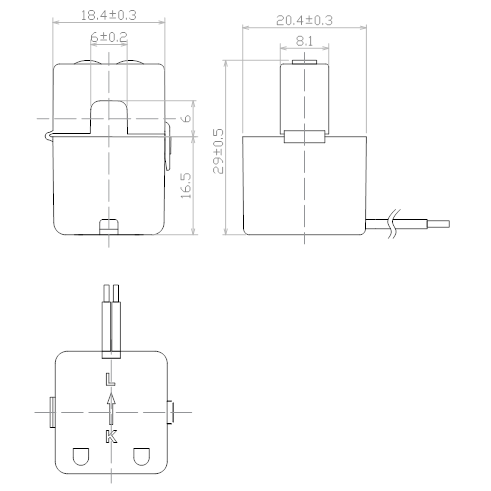

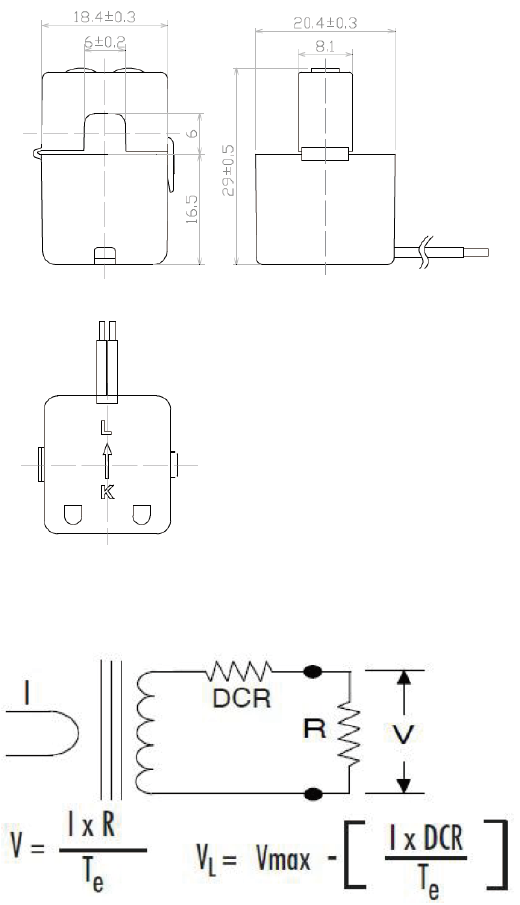

| 0.23” window opening (ID) |
| Custom design Turns-Ratio available |
| Approximate weight 15 g |
| Standard Input Current 0 - 25 A |
| Frequency 50 Hz - 60 Hz |
| Standard accuracy 0.5, 1, 3 |
| Insulation Voltage 4000 Vac/ 1 min |
| Operating Temp. - 40 °C to + 65 °C |
| Storage Temp. - 45 °C to + 85 °C |
