PCS08-C Clamp type transformer


The PCS08-Cseries are clamp-on current transformers. The CT can bemounted to existing panels, such as control center s or load centers, tomeasure or monitor wattage.Thes e CTs can be mounted withoutremoving existing cables fo r easi er installation.

Measuring range:0 - 10 A Measurement Frequency:50 - 60 Hz Special indicators: customizable.


In Stock

YES

Delivery

10 Days

Warranty

24 months

Select Options

MODEL
- +
Add to inquiry form

Overview

The PCS08-Cseries are clamp-on current transformers. The CT can bemounted to existing panels, such as control center s or load centers, tomeasure or monitor wattage.Thes e CTs can be mounted withoutremoving existing cables fo r easi er installation.

Specification

MODELINPUT CURRENTAVAILABLE OUTPUT
PCS0801-C1 ACURRENT OUTPUTS @
2 mA, 2.5 mA, 4 mA,
5 mA, 10 mA
VOLTAGE OUTPUTS @
0.25 V, 0.33 V, 0.5 V.
PCS0802-C2 A
PCS0803-C3 A
PCS0805-C5 A
PCS0810-C10 A


Environmental

Energy and sub-metering products
Electrical load monitoring
Network equipment
Instruments and sensors
Control systems
Go GREEN initiatives

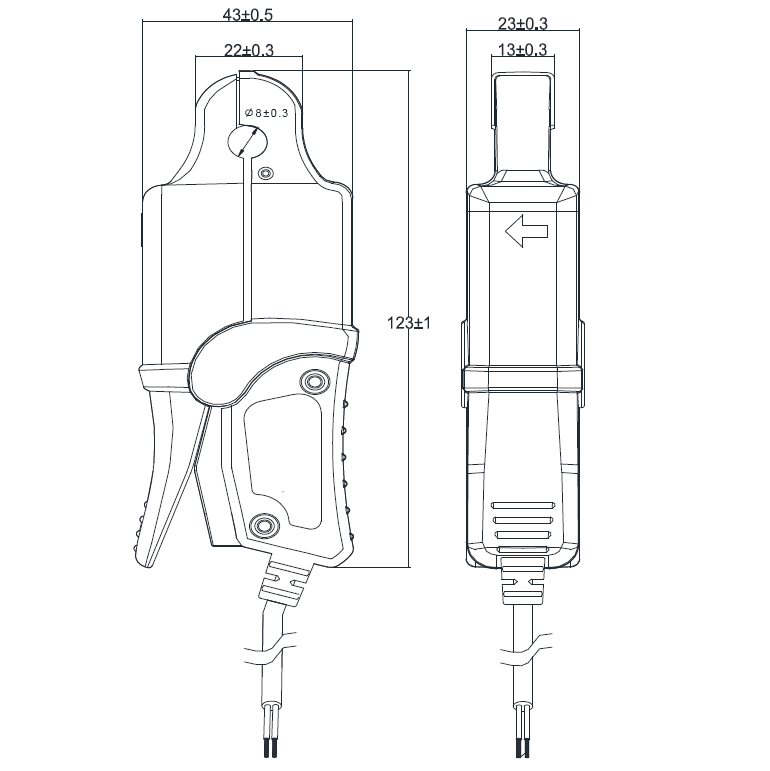

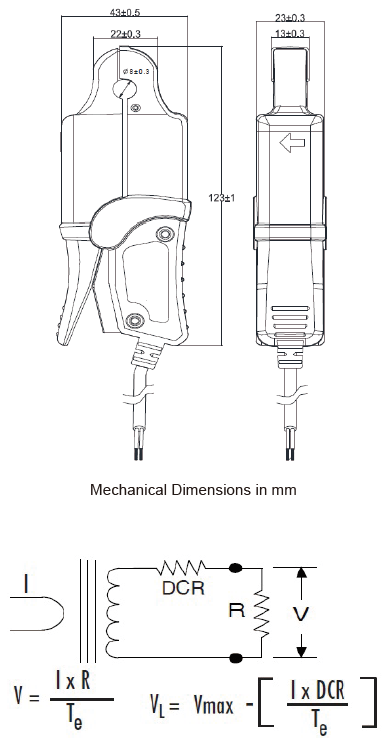

0 .3 1 5 ” w in d o w o p ening (ID)
Custom design Turns-Ratio available
Approximate weight 250 g
Standard Input Current 0 - 10 A
Frequency 50 Hz - 60 Hz
Standard accuracy 0.2, 0.5
Insulation Voltage 2500 Vac / 1 min
Operating Temp. - 40 °C to + 70 °C
Storage Temp. - 45 °C to + 85 °C
