PCO09 Micro precision transformer


The PCO09 series are mini-precision current transformers. The CT is Small size and low cost.

Measuring range:0 - 60 A Measurement Frequency:50 - 60 Hz Special indicators:customizable.


In Stock

YES

Delivery

10 Days

Warranty

24 months

Select Options

MODEL
- +
Add to inquiry form

Overview

The PCO09 series are mini-precision current transformers. The CT is Small size and low cost.

Specification

MODELINPUT CURRENTAVAILABLE OUTPUT
PC009-1010 A

CURRENT OUTPUTS @ 5 mA,

10 mA, 15 mA, 20 mA,

30 mA, 40 mA, 70 mA

Output can be customized by customer

PC009-2020 A
PC009-3030 A
PCO09-5050 A
PCO09-6060 A
PCO09-7070 A


Environmental

Energy and sub-metering products
Electrical load monitoring
Network equipment
Instruments and sensors
Control systems
Go GREEN initiatives

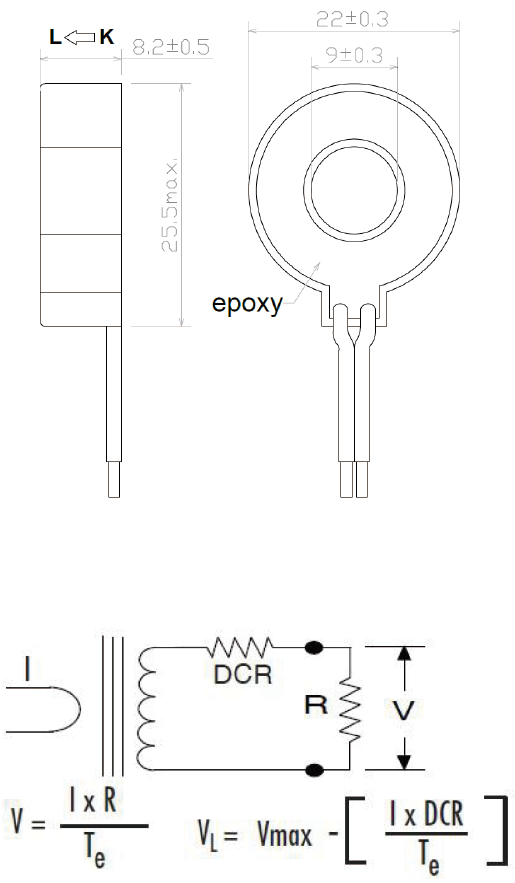

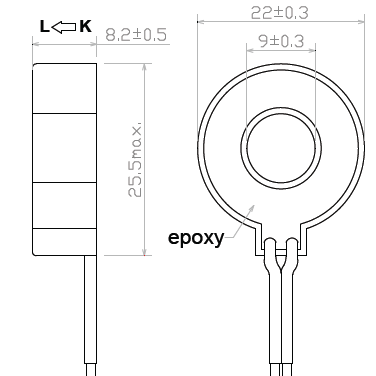

0.354” window opening ( ID )
PVC wire leads - 26 ~ 24 A WG
Approximate weight 10 g
Rated amp 0 - 60 A
Frequency 50 Hz - 60 Hz
Standard accuracy 0.2, 0.5, 1, 3
Insulation Voltage 4000 Vac / 1 min
Operating Temp. - 40 °C to + 65 °C
Storage Temp. - 45 °C to + 85 °C
