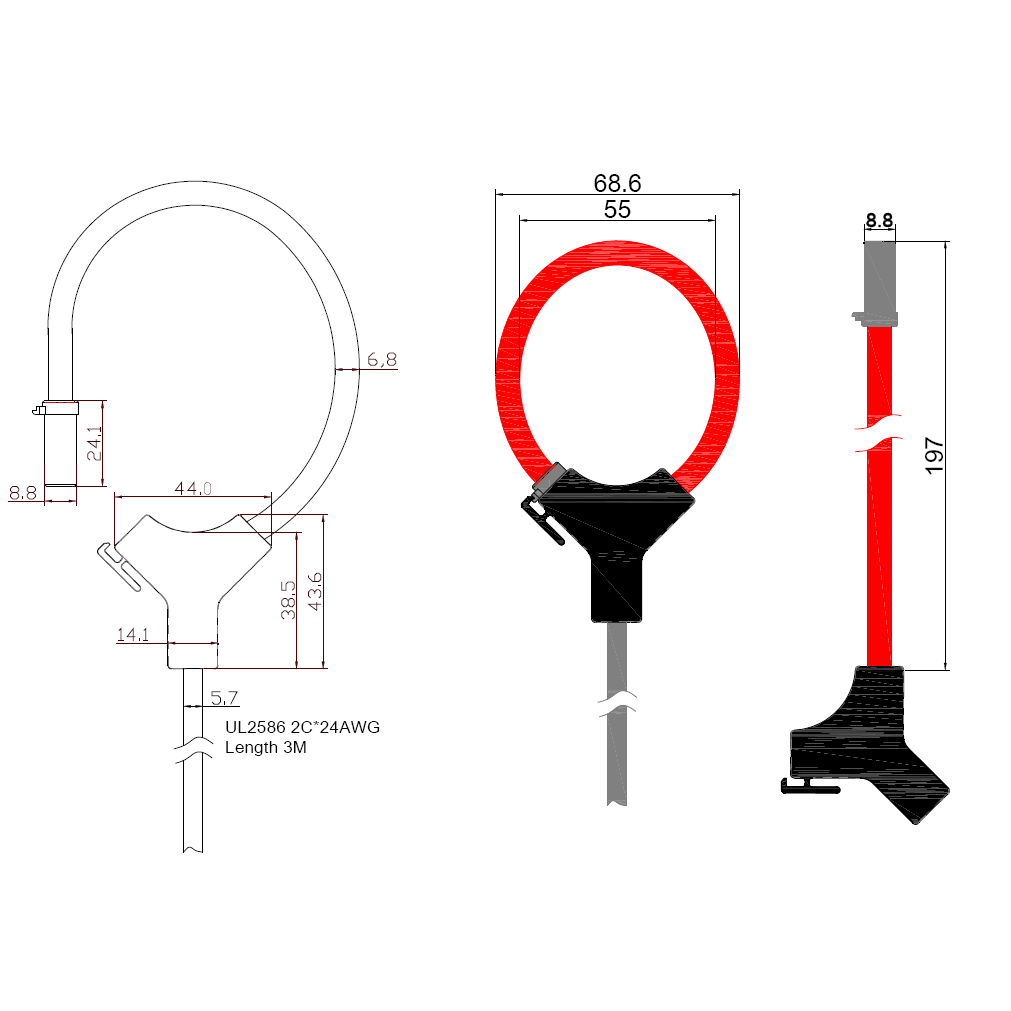

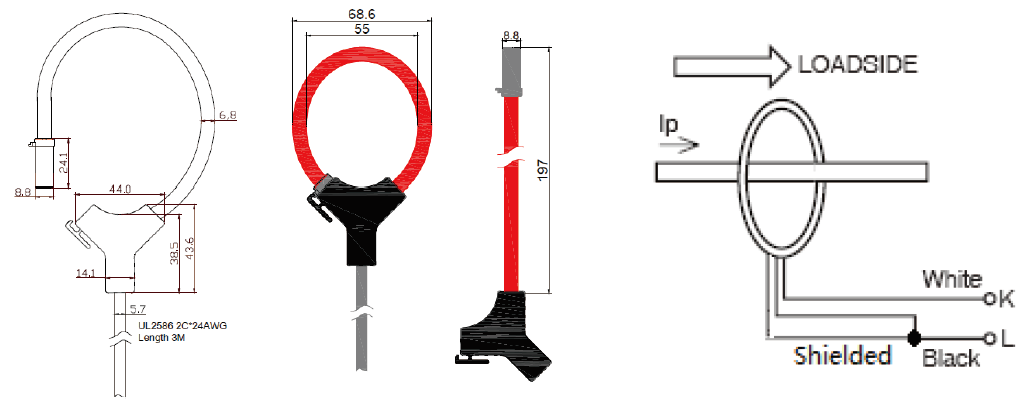

Clamp-on Flexible Rogowski coil PRC55500-2 Clamp-on Flexible Rogowski coil Current Transformer has been designed for accurate measurement of wide AC current, pulsed DC or distorted waveforms. It may be used to measure AC current over a wide dynamic range and from 10 Hz to 20 kHz.
Measuring range:0 - 400 A Accuracy range:5 % Special indicators:customizable.Clamp-on Flexible Rogowski coil PRC55500-2 Clamp-on Flexible Rogowski coil Current Transformer has been designed for accurate measurement of wide AC current, pulsed DC or distorted waveforms. It may be used to measure AC current over a wide dynamic range and from 10 Hz to 20 kHz.
| MODEL | PRC55500-2 |
| Current Range | 500 |
| Output Voltage | 17.2 mV AC/ @ 50 Hz 20.64 mV AC/ @ 60 Hz |
| Accuracy | < 3 % |
| Phase Shift | 50 / 60 Hz (typical < 0.5°) |
| Frequency Range | 10 Hz to 20 kHz |
| Linearity (10% to 100% of range) | ± 0.2 % of reading |
| Conductor Position Sensitivity | ± 2 % maximum |
| Influence of External Field | ± 2 % maximum |
| Working Temp | - 20 °C to + 60° |
| Insullation Category | CATIII |
| AC current probe utility by the Rogowski principle |
| No danger from open-circuited secondary |
| Coil length from 40 cm to 100 cm |
| Flexible and lightweight |
| Easy & quick installation in uninterruptible power line |
| Available shielding type on request |
| High secondary output voltage & precise linearity error |
| Very high current monitoring |
| DC ripple measurement |
| Harmonics and transients monitoring |
| Power monitoring & control systems |
| Applicable in electronic Watt-hour meter |
