The PTS16 series current transmitter is used for measuring or monitoring current conditions.

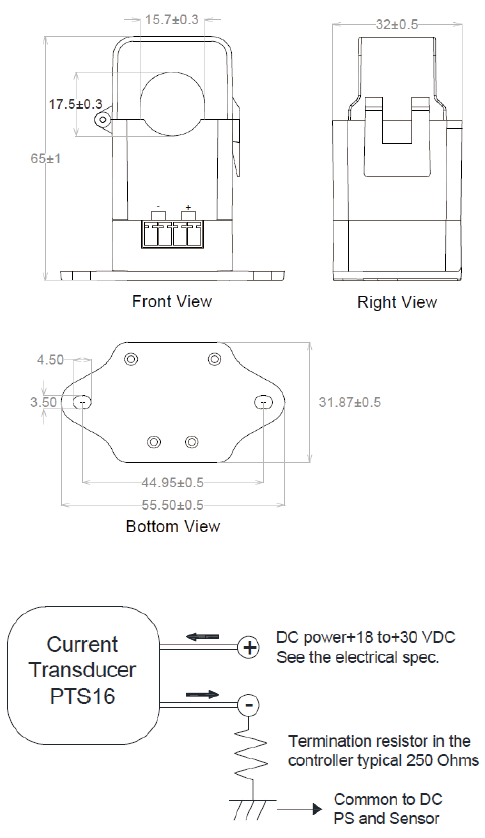

Measuring range:0 - 150 A Measurement Frequency:50 - 400 Hz Special indicators:customizable.The PTS16 series are split-core current transducers. The transducer can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage. These CTs can be mounted without removing existing cables for easier installation.
| MODEL | INPUT CURRENT | AVAILABLE OUTPUT |
| PTS16-50 | 50 A | POWER SUPPLY @ 18 ~ 30 V CURRENT OUTPUTS @ 4 ~ 20 mA |
| PTS16-80 | 80 A | |
| PTS16-100 | 100 A | |
| PTS16-120 | 120 A | |
| PTS16-150 | 150 A |
| Phase fired controlled heaters |
| Quickly varying motor loads |
| Chopped wave form drivers |
| Current measurements |
| Split Core design |
| 4 - 20 mA DC output, 18 - 30 V DC powered |
| 16 mm windows size |
| 0 ~ 150 A current customized |
| Accuracy 1 % Frequency range 20 Hz - 5 KHZ |
| Weight 90 g |
| Easy installation |
| Excellent linearity over the whole range |
| Compact case |
| High isolation between primary and secondary |
